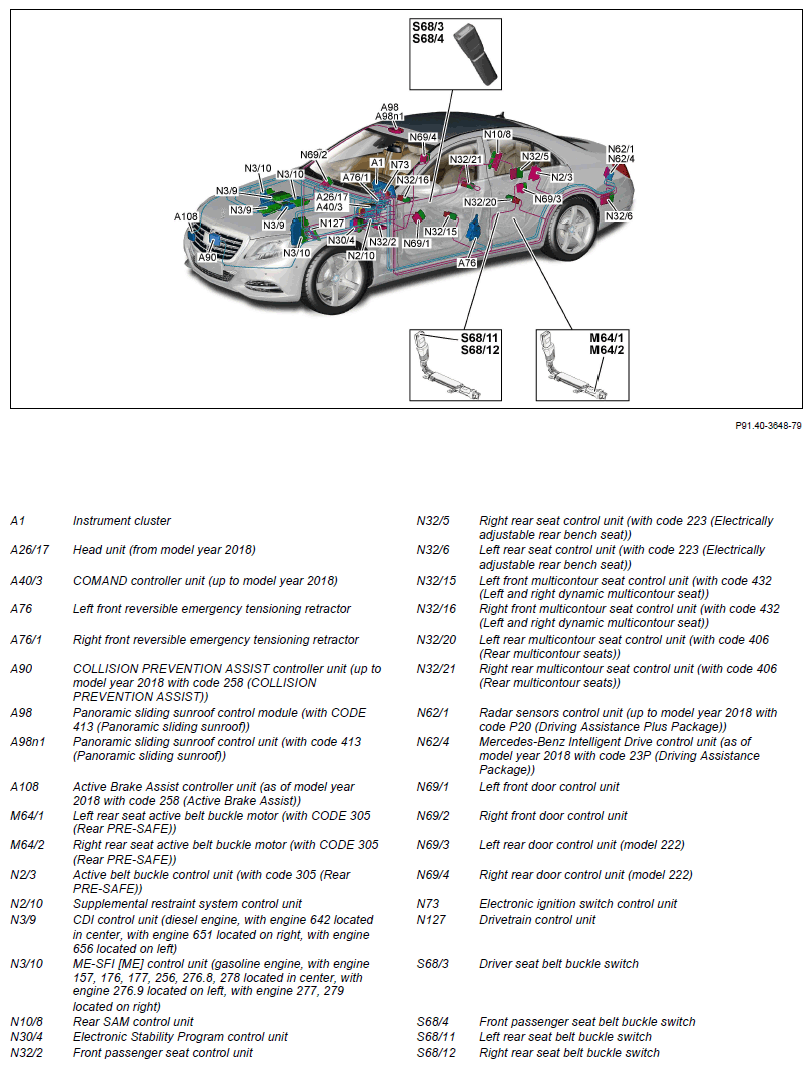

Overview Of System Components For PRE-SAFE(R) - GF91.40-P-9997LF
Model 217, 222
Shown model 222.0
Model 217
The rear control unit (N22/6) is also installed, but it is not shown.
| Component description for instrument cluster | Model 217, 222 up to model year 2018 A1 |
GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 A1 |
GF54.30-P-6000LFM | ||
| Head unit, component description | Model 217, 222 as of model year 2018 A26/17 |
GF82.85-P-3140LFM | |
| Component description for COMAND controller unit | Model 217, 222 up to model year 2018 A40/3 |
GF82.85-P-3136LF | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020LF | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 217, 222 up to model year 2018 with code 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214LF | |
| Component description for panoramic sliding roof control module | Model 222 with code 413 (Automatic panoramic sliding sunroof) A98, A98n1 |
GF77.20-P-4106LF | |
| Active Brake Assist controller unit, component description | Model 217, 222 as of model year 2018 with code 258 (Active Brake Assist System) A108 |
GF30.30-P-3222LFM | |
| Active belt buckle control unit, component description | Model 222 with code 305 (Rear PRE-SAFE) N2/3 |
GF91.60-P-4122LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | Model 222 with engine 642.8 N3/9 |
GF07.16-P-6000OGS | |
| Model 222 with engine 651.9 N3/9 |
GF07.16-P-6000OLA | ||
| Model 222 with engine 656.9 N3/9 |
GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 217, 222 with engine 157.9, 278.9 N3/10 |
GF07.61-P-6000MML | |
| Model 217 with engine 176.9, 177.9 Model 222 with engine 176.9, 177.9 N3/10 |
GF07.61-P-6000MNL | ||
| Model 222 with engine 256.9 N3/10 |
GF07.61-P-6000MRT | ||
| Model 217, 222 with engine 276.8 N3/10 |
GF07.61-P-6000MMT | ||
| Model 222 with engine 276.9 N3/10 |
GF07.61-P-6000MMK | ||
| Model 217 with engine 279 Model 222 with engine 277, 279 N3/10 |
GF07.61-P-6000MUB | ||
| Model 222 with engine 264.9 N3/10 |
GF07.61-P-6000MRK | ||
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Rear control unit, component description | Model 217 N22/6 |
GF54.21-P-4134LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 N30/4 |
GF42.45-P-5119LF | |
| Model 222.004/057/104/157/163 up to model year 2018 N30/4 |
GF42.45-P-5119LFH | ||
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 |
GF42.45-P-5119LFM | ||
| Model 222.173 as of model year 2018 N30/4 |
GF42.45-P-5119LFA | ||
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241LF | |
| Right rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) N32/5 |
GF91.29-P-5290LF | |
| Left rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) N32/6 |
GF91.29-P-5285LF | |
| Multicontour seat control unit (MCS), component description | Model 217, 222 with code 432 (Left and right dynamic multicontour seat) except code 406 (Rear multicontour seat) N32/15, N32/16 |
GF91.25-P-5201LF | |
| Model 222 with code 406 (Rear multicontour seat) except code 432 (Left and right dynamic multicontour seat) N32/20, N32/21 |
GF91.25-P-5201LFA | ||
| Component description for radar sensors control unit | Model 217, 222 up to model year 2018 with code P20 (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301LF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) N62/4 |
GF30.30-P-3312LFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 N69/3, N69/4 |
GF72.29-P-6021LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 Model 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 Model 222 with engine 176.9, 177.9, 256.9, 264.9 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 Model 222.163/173 with engine 276.8 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 N127 |
GF54.21-P-2141OGS | ||
| Model 222 with engine 651.9 N127 |
GF54.21-P-2141OLA | ||
| Model 222 with engine 656.9 N127 |
GF54.21-P-2141OIA | ||
| Table of contents for function description of PRE-SAFE(R) | GF91.40-P-0997LF |
