Overview Of System Components For Electric Seats - GF91.29-P-9992LF
Model 217, 222

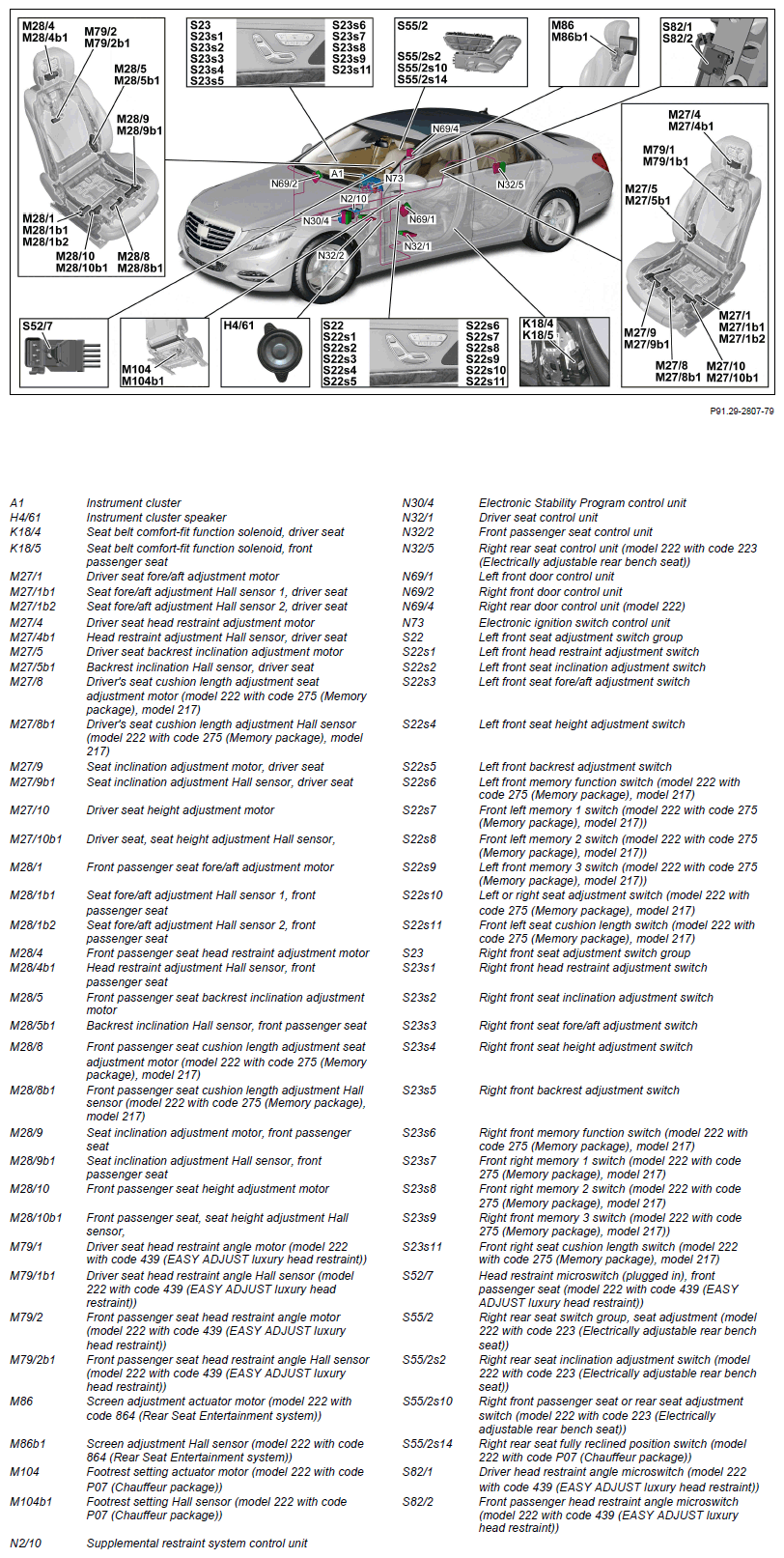

Electrical seat adjustment (ESE), shown on model 222.0
In model 217, the following components are also installed, but they are not shown:
- Left backrest release/backrest inclination microswitch (S91/6):
- Left backrest release microswitch (S91/6s1)
- Left backrest inclination microswitch (S91/6s2)
- Right backrest release/backrest inclination microswitch (S92/6):
- Right backrest release microswitch (S92/6s1)
- Right backrest inclination microswitch (S92/6s2)

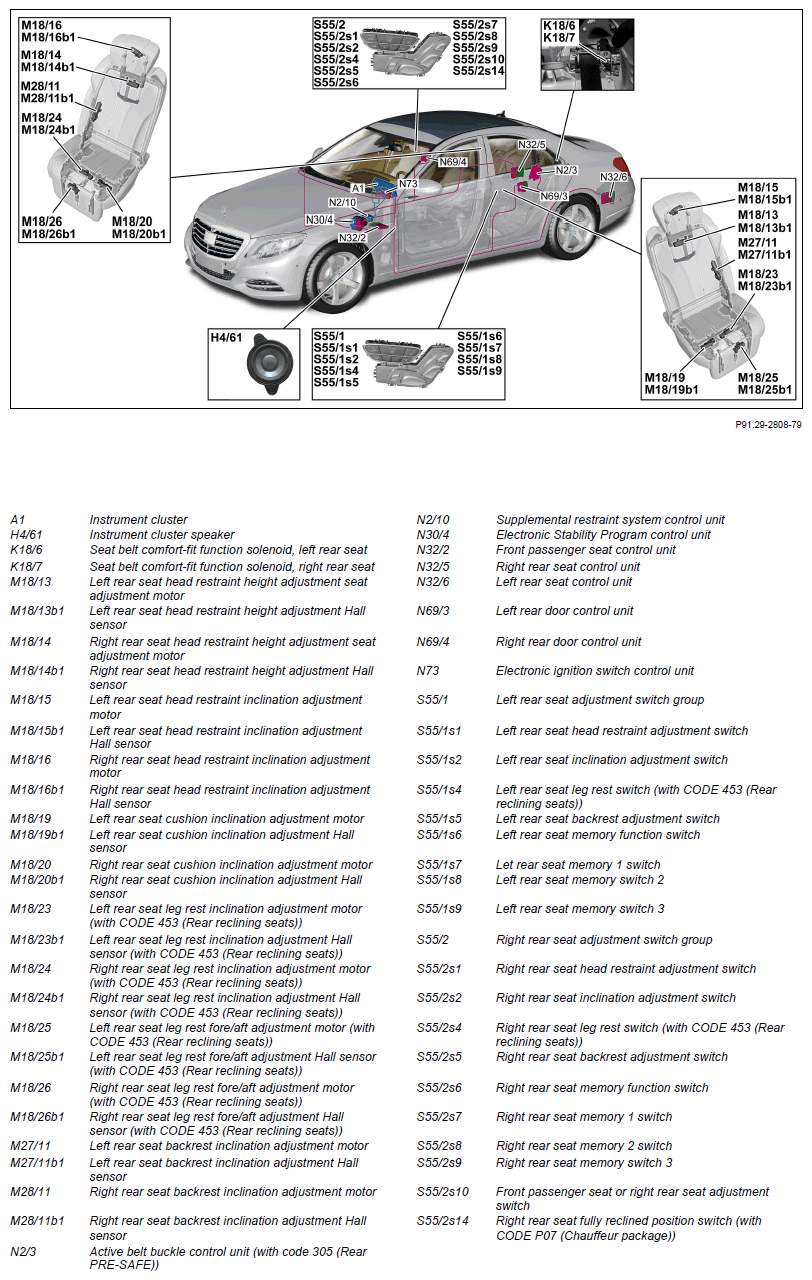

Electrical seat adjustment (ESA [ESE]) in rear (model 222 with code 223 (Electrically adjustable rear bench seat)), shown on model 222.0

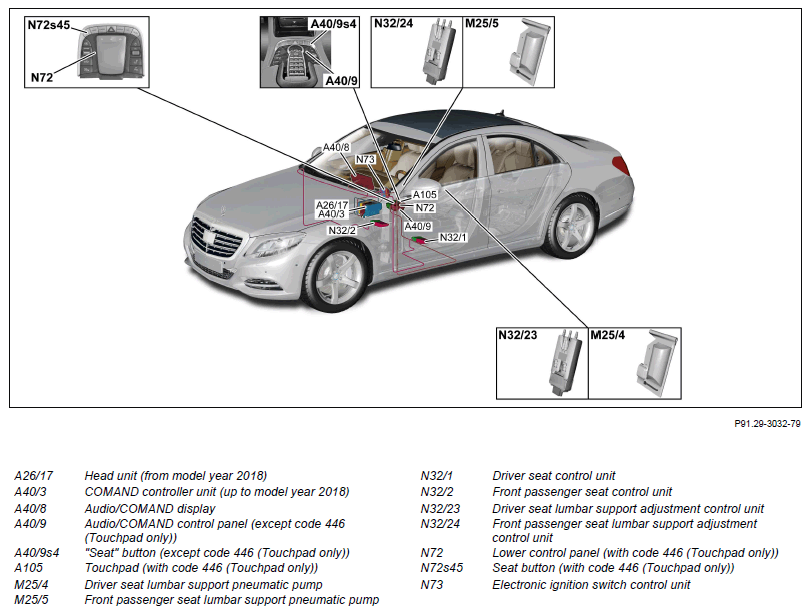

Lumbar support adjustment (except CODE 432 (Left and right dynamic multicontour seat)), shown on model 222.0

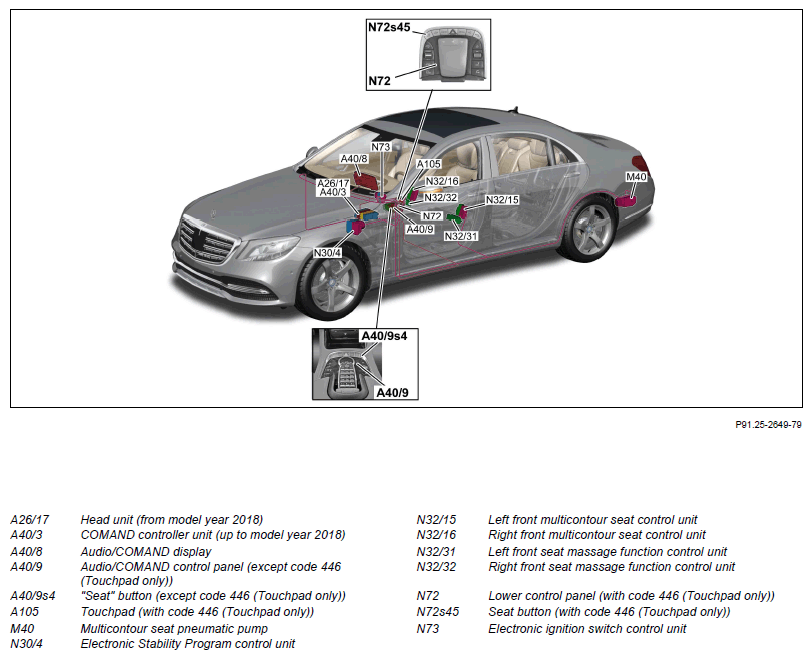

Multicontour seat (MKS) (with CODE 432 (Left and right dynamic multicontour seat)), shown on model 222.0

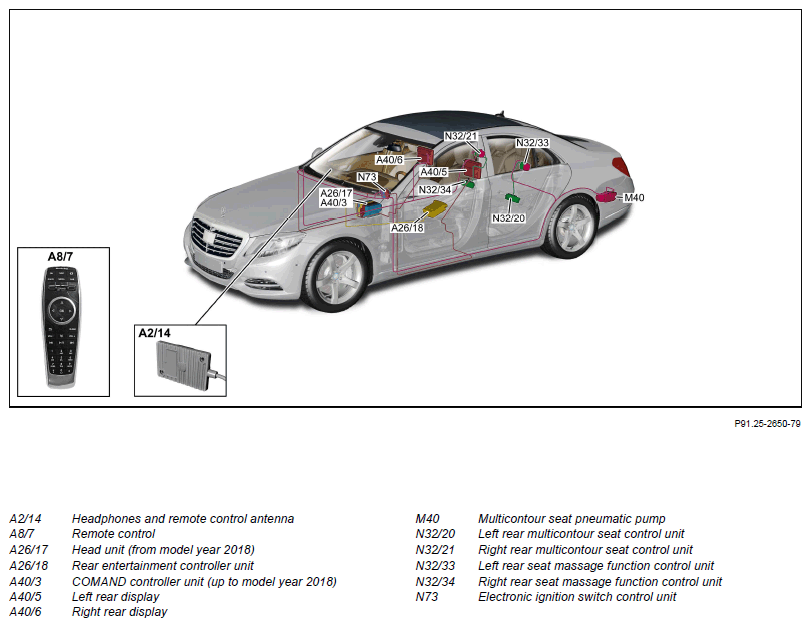

Multicontour seat (MCS) in the rear (model 222 with code 406 (Multicontour seats in the rear)), shown on model 222.0

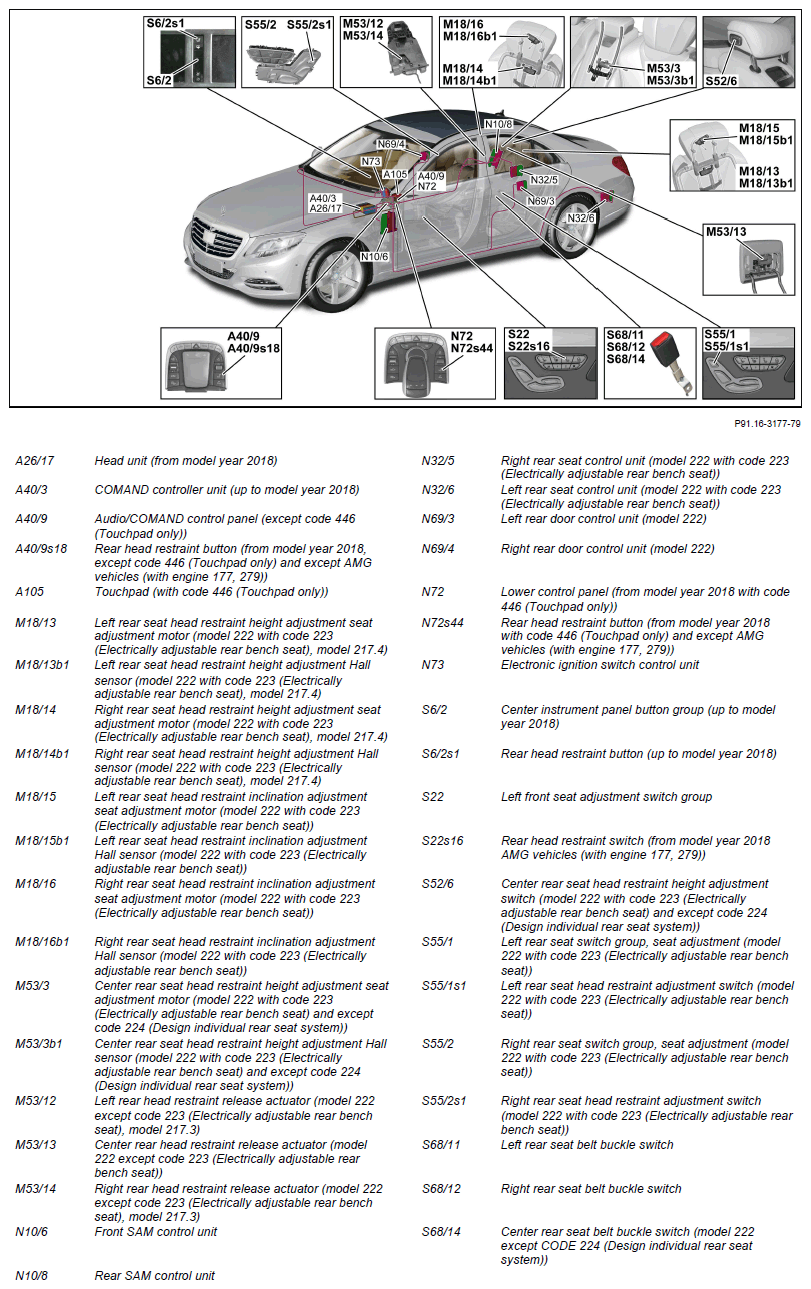

Rear head restraint adjustment, shown on model 222.0
Model 217
Rear control unit (N22/6) is not shown.

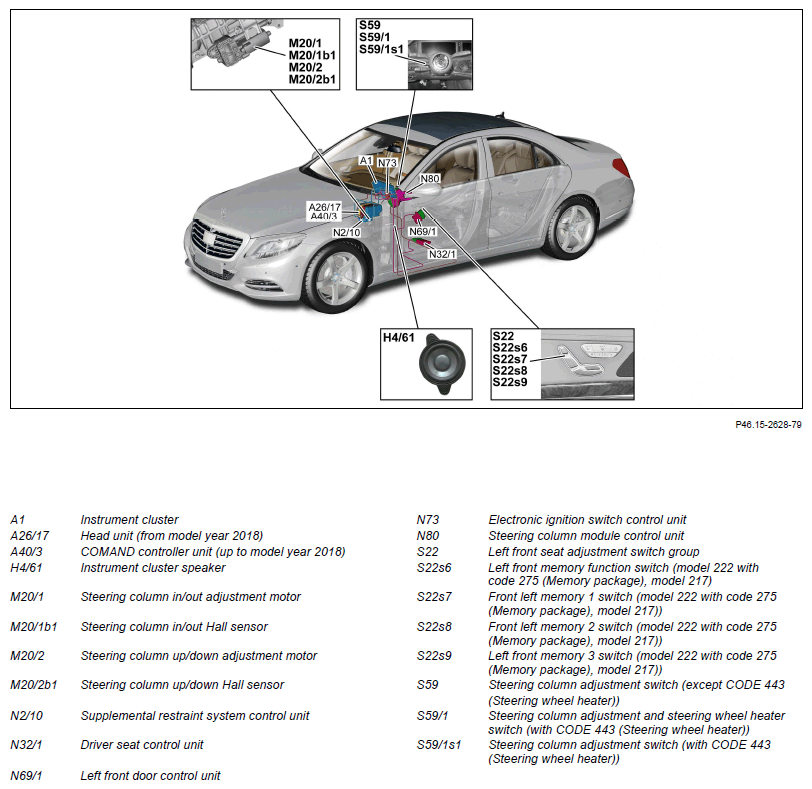

Electric steering column adjustment (ELE), shown on model 222.0
| Component description for instrument cluster | Model 217, 222 up to model year 2018 A1 |
GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 A1 |
GF54.30-P-6000LFM | ||
| Head unit, component description | Model 217, 222 as of model year 2018 A26/17 |
GF82.85-P-3140LFM | |
| Rear entertainment system controller unit, component description | Model 222 up to model year 2018 with code 864 (Rear compartment entertainment package) A26/18 |
GF82.90-P-4021LF | |
| Model 222 as of model year 2018 with code 864 (Rear compartment entertainment package) A26/18 |
GF82.90-P-4021LFM | ||
| Component description for COMAND controller unit | Model 217, 222 up to model year 2018 A40/3 |
GF82.85-P-3136LF | |
| Component description for rear display left/right | Model 222 with code 864 (Rear compartment entertainment package) A40/5, A40/6 |
GF82.90-P-4020LF | |
| Component description for Audio/COMAND display | Model 217, 222 up to model year 2018 A40/8 |
GF54.30-P-6150LF | |
| Model 217, 222 as of model year 2018 A40/8 |
GF54.30-P-6150LFM | ||
| Component description for Audio/COMAND control panel | Model 217, 222 up to model year 2018 A40/9 |
GF54.21-P-4501LF | |
| Model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 |
GF54.21-P-4501LFM | ||
| Multicontour seat pneumatic pump (MCS), component description | Model 217, 222 with code 432 (Left and right dynamic multicontour seat) Model 222 with code 406 (Rear multicontour seat) M40 |
GF91.25-P-5205LF | |
| Active belt buckle control unit, component description | Model 222 with code 305 (Rear PRE-SAFE) N2/3 |
GF91.60-P-4122LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Rear control unit, component description | Model 217 N22/6 |
GF54.21-P-4134LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 N30/4 |
GF42.45-P-5119LF | |
| Model 222.004/057/104/157/163 up to model year 2018 N30/4 |
GF42.45-P-5119LFH | ||
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 |
GF42.45-P-5119LFM | ||
| Model 222.173 as of model year 2018 N30/4 |
GF42.45-P-5119LFA | ||
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231LF | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241LF | |
| Right rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) N32/5 |
GF91.29-P-5290LF | |
| Left rear seat control unit, component description | Model 222 with code 223 (Electrically adjustable rear bench seat) N32/6 |
GF91.29-P-5285LF | |
| Multicontour seat control unit (MCS), component description | Model 217 with code 432 (Left and right dynamic multicontour seat) Model 222 with code 432 (Left and right dynamic multicontour seat) except code 406 (Rear multicontour seat) N32/15, N32/16 |
GF91.25-P-5201LF | |
| Model 222 with code 406 (Rear multicontour seat) N32/20, N32/21 |
GF91.25-P-5201LFA | ||
| Component description for lumbar support control unit | Model 217, 222 except code 432 (Left and right dynamic multicontour seat) N32/23, N32/24 |
GF91.29-P-5281LF | |
| Component description for massage function control unit | Model 217, 222 with code 432 (Left and right dynamic multicontour seat) Model 222 with code P43 (Rear seat comfort package) N32/31, N32/32, N32/33, N32/34 |
GF91.25-P-5212LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 N69/3, N69/4 |
GF72.29-P-6021LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | Model 217, 222 up to model year 2018 N80 |
GF54.21-P-6051LF | |
| Model 217, 222 as of model year 2018 N80 |
GF54.21-P-6051LFM | ||
| Table of contents for function description of electric seats | GF91.29-P-0992LF |
