Remove/Install Rear Shelf - AR68.30-P-4581LC

MODEL 217.3

Courtesy of MERCEDES-BENZ USA

Shown vehicle with CODE 540 (Electric roller sun blind for rear window)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove upper paneling from C-pillars		AR68.30-P-4490LC
2	Remove backrest in rear		AR91.12-P-1620LF

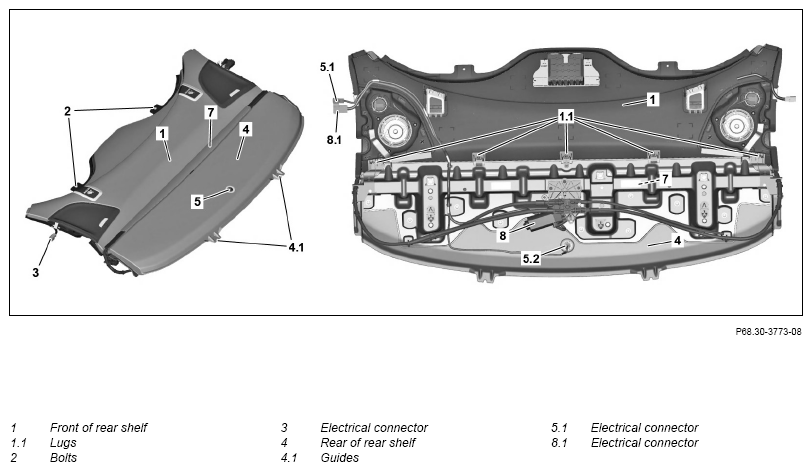

3	Unscrew bolts (2) from front of rear shelf (1)
4	Lift front of rear shelf (1) and disconnect electrical connector (3) from speakers
5	Remove front of rear shelf (1) toward front	: Ensure that lugs (1.1) are seated correctly.

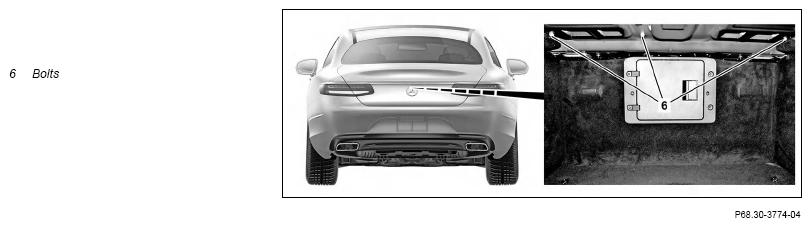

6	Unscrew bolts (6) in trunk	When removing rear of rear shelf (4)
7	Disconnect electrical connectors (5.1, 8.1)	When removing rear of rear shelf (4) MODEL 217.3 with CODE 540 (Electric sunblind for rear window) Electrical connector (8.1) only on vehicles with CODE 540 (Electric roller sun blind for rear window).
8	Remove rear of rear shelf (4) toward front	When removing rear of rear shelf (4)
		: Ensure that guides (4.1) are seated correctly.
9	Install in the reverse order
