Remove/Install Front Floor Covering (Left) - AR68.20-P-2050LC

MODEL 217

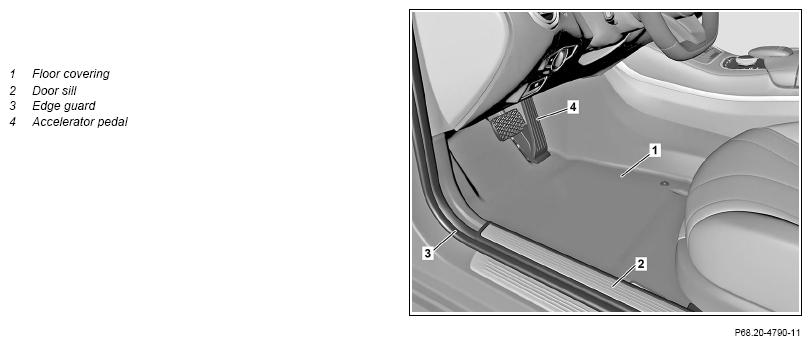

Fig 1: Front Floor Covering (Left) Component Location - Model 217

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust steering column toward rear and completely upward
2	Unscrew bolts on guide rails from left front seat		AR91.10-P-1000LF
3	Move left front seat all the way back
4	Switch off ignition and remove transmitter key
5	Remove cover below left of instrument panel		AR68.10-P-1500LF
6	Remove accelerator pedal (4)		AR30.12-P-1321LF
7	Remove left door sill (2)		AR68.30-P-4100LC
8	Remove edge guard (3) in area of floor covering (1) on left
9	Tilt left front seat toward rear and secure
10	Remove floor covering (1)	Use assembly wedge in center console area. : Position floor covering (1) below center console. Mounting wedge	Fig 2
11	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
