Remove/Install Rear Floor Covering - AR68.20-P-4800LC

Model 217

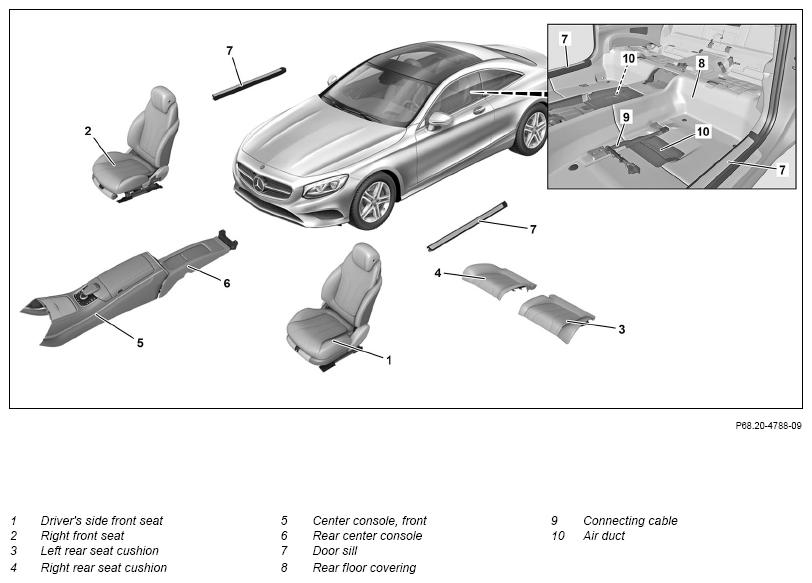

Fig 1: Rear Floor Covering Component Location - Model 217

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left front seat (1) and right front seat (2)		AR91.10-P-1000LF
2	Remove left rear seat cushion (3) and right rear seat cushion (4)		AR91.12-P-1020LF
3	Remove front center console (5)	Model 217 up to model year 2018	AR68.20-P-2000LF
		Model 217 as of model year 2018	AR68.20-P-2000LFM
4	Remove rear center console (6)		AR68.20-P-2020LC
5	Remove door sill moldings (7)		AR68.30-P-4100LC
6	Remove rear floor covering (8)	Press rear floor covering (8) in area of side trim downward during removal. Risk of damage to rear side trim. : Ensure that the air ducts (10) are seated correctly. Ensure that rear floor covering (8) is seated correctly.
7	Install in the reverse order
