Remove/Install Radial Shaft Sealing Ring Of Drive Shaft - AR35.30-P-4651S
Model 223 with engine 176, 256, 279, 656
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove | |||
| 1 | Remove corresponding rear axle shaft. | AR35.30-P-0621S | |
| 2 | Use suitable tool to pry out radial shaft sealing ring (32a) from rear axle differential (50). | Do not damage seat surface of radial shaft sealing ring (32a) in rear axle differential (50). Leakage will otherwise occur. |
|
| 3 | Clean seat surface of radial shaft sealing ring (32a) in rear axle differential (50). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 4 | Check seat surface of radial shaft sealing ring (32a) in rear axle differential (50) for damage. | If damage is found, ↓ Replace rear axle differential (50). Model 223 with engine 176, 256, 279, 656 with code Z07 (B7 armoring on special protection version) |
AR35.31-P-0522SG |
| Model 223 with engine 176, 256, 279, 656 except code Z07 (B7 armoring on special protection version) | AR35.31-P-0522S | ||
| Install | |||

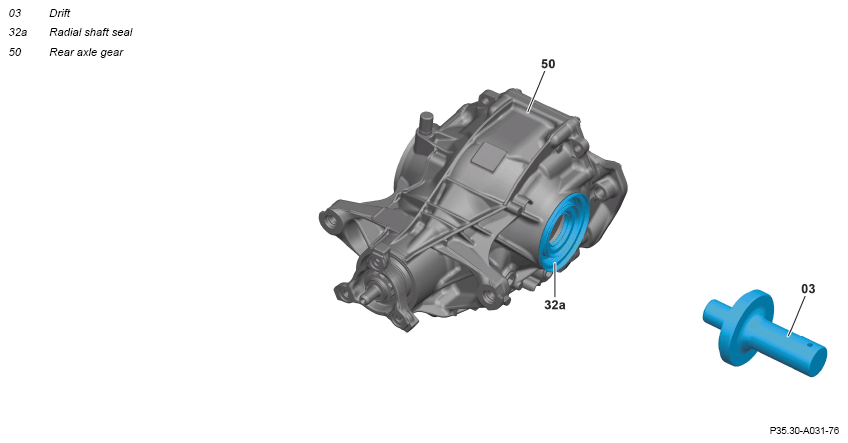

| 5 | Press in radial shaft sealing ring (32a) with drift (03) far enough that the drift (03) makes contact with the rear axle differential (50). | Fig 1 | |
| 6 | Moisten sealing lip of radial shaft sealing ring (32a) with transmission oil. | ||
| Universal hypoid gear oils (specification 235.7) | BB00.40-P-0235-07A | ||
| 7 | Install corresponding rear axle shaft. | AR35.30-P-0621S | |
| 8 | Check and correct oil level in rear axle differential (50). | AR35.31-P-0520-08S | |
| Universal hypoid gear oils (specification 235.7) | BB00.40-P-0235-07A | ||
| Sealant, Omnifit 100H (50 g) | *BR00.45-Z-1061-01A | ||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| *BA35.31-P-1004-02I | |||
| 9 | Check rear axle differential (50) for leak tightness. | ||
| 10 | Lower vehicle with vehicle lift. | AR00.60-P-1006A |
REAR AXLE DIFFERENTIAL HOUSING
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA35.31-P-1004-02I | Filling screw on rear axle differential | Nm | 50 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |
