Check Condition Of Steering And Rear Axle Tie Rods - AP46.00-P-4654S
Model 223
with code 201 (Rear axle steering)
Model 223
with code 216 (Rear axle steering with large steering angle)

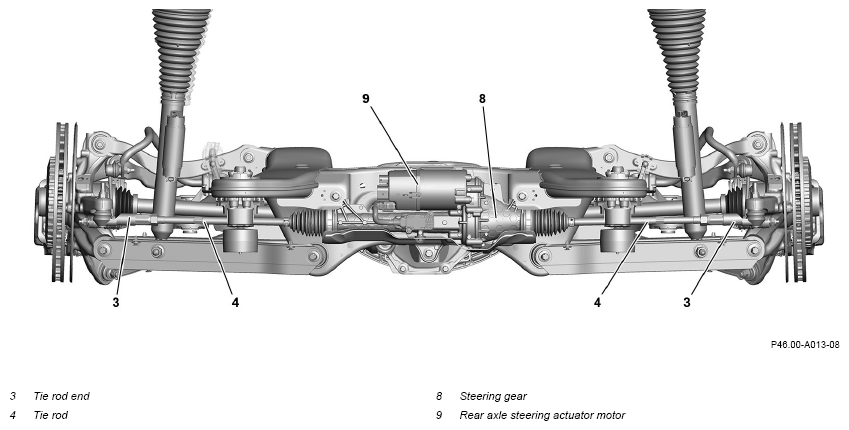

Shown on model 223.163 with code 216 (Rear axle steering with large steering angle)

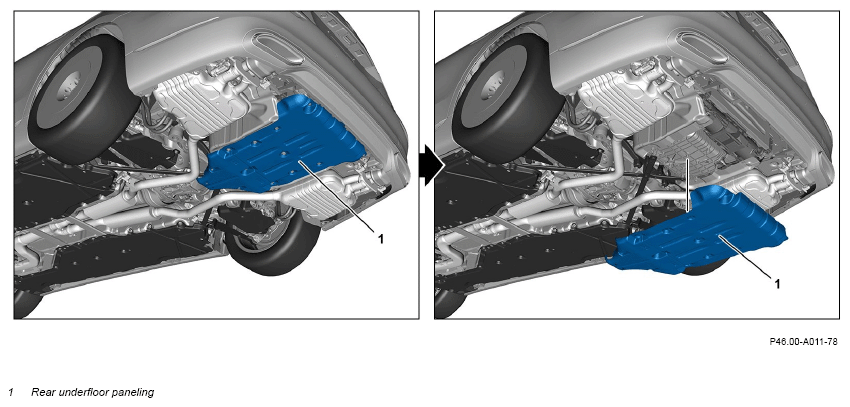

Shown on model 223.163 with code 216 (Rear axle steering with large steering angle)

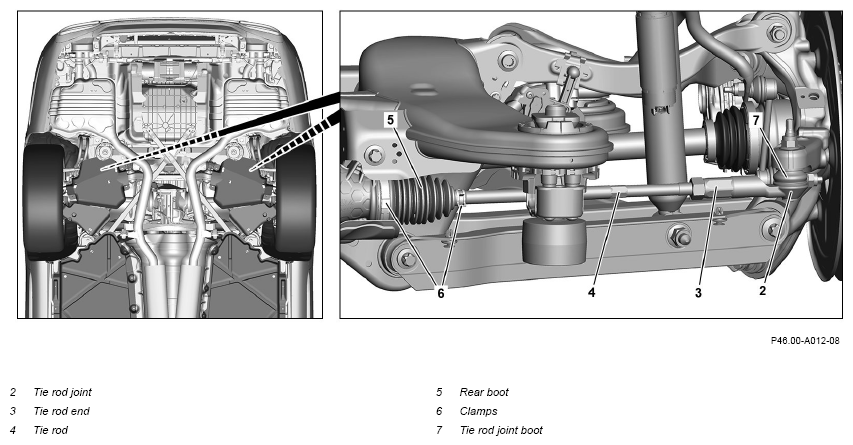

Shown on model 223.163 with code 216 (Rear axle steering with large steering angle)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Preparatory activity | |||
| 1 | Unlock steering lock. | ||
| Remove | |||
| 2 | Remove rear underfloor paneling (1). | ||
| AR61.30-P-1001S | |||
| Check | |||
| 3 | Check tie rod joint boots (7) of tie rod ends (3) for condition, leak tightness and correct seating. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|
| 4 | Check tie rod joints (2) for play by firmly pulling and pushing the tie rod ends (3). | If problems are determined, ↓ rectify the problems. |
|
| 5 | Check tie rod ends (3) and tie rods (4) for firm connection by pulling and pushing each one. | If problems are determined, ↓ rectify the problems. |
|
| 6 | Check each inner tie rod joint for play by firmly pulling and pushing on tie rods (4) in direction of steering gear (8). | If problems are determined, ↓ rectify the problems. |
|
| 7 | Stretch rear boots (5) by turning steering wheel all the way to right and left, and check for cracks, indentations and chafe marks. | Otherwise, the material may be damaged, leading to fluid loss with consequential damage. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|
| 8 | Check clamps (6) are firmly and correctly seated. | Otherwise, this may lead to fluid loss with consequential damage. Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ rectify the problems. |
|
| 9 | Check steering gear (8). | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ Replace steering for safety reasons. |
|
| 10 | Check rear axle steering actuator motor (9) for external damage. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If problems are determined, ↓ Replace steering for safety reasons. |
|
| Install | |||
| 11 | Install rear underfloor paneling (1). | ||
| AR61.30-P-1001S |
