Underbody Paneling Removal And Installation - Ar61.30-P-1001S
Model 223

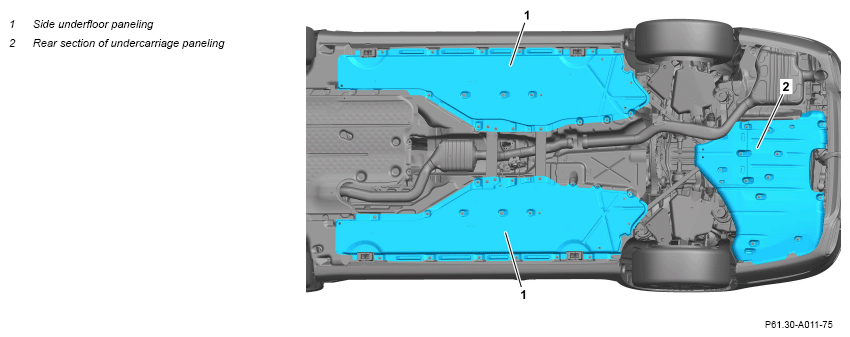

Shown with single-pipe exhaust system

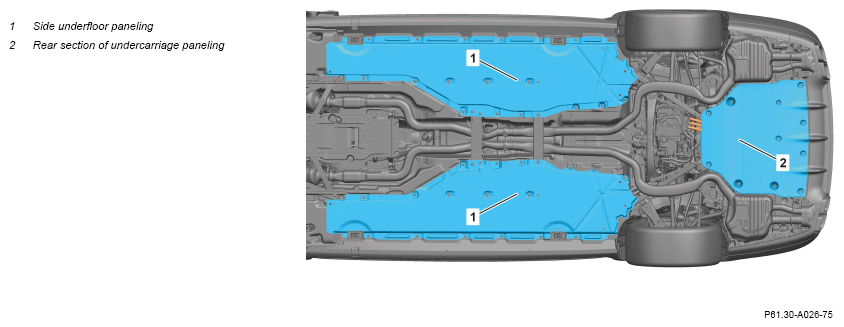

Shown on model 223 with code ME10 (Hybrid vehicle (plug-in, PHEV))
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 223 with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AH00.00-Z-0300-01A |
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-P-1006A | |
| 2 | Release front fender liners in area of side underfloor panelings (1). | Model 223 except code Z07 (B7 armoring on special protection version) |
|
| AR88.10-P-1301S | |||
| 3 | Release rear fender liner rear in area of side underfloor panelings (1). | Model 223 except code Z07 (B7 armoring on special protection version) |
AR88.10-P-1302S |
| 4 | Release rear engine compartment lining in area of side underfloor panelings (1). | Model 223 except code Z07 (B7 armoring on special protection version) |
AR61.20-P-1105S |
| 5 | Remove side underfloor panelings (1). | Model 223 except code Z07 (B7 armoring on special protection version) |
|
| 6 | Remove rear underfloor paneling (2). | ||
| 7 | Install in the reverse order. |
