Remove/Install Left Rear Seat Belt Buckle - AR91.40-P-1526SA

Model 223

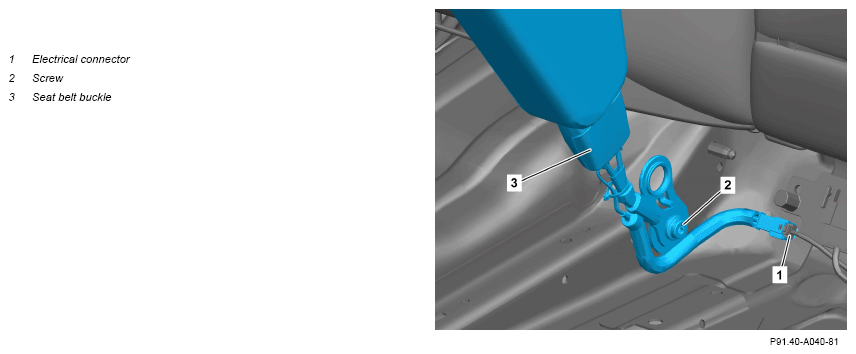

Shown on vehicle except code 223 (Electric rear seat backrest adjustment and head restraints) and except code 224 (Individual rear seat system design)

G16192807

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove seat cushion in rear passenger compartment.	Model 223 with code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats)	AR91.12-P-1022SA
		Model 223 except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats)	AR91.12-P-1022S
2	Disconnect electrical connector (1).
3	Remove bolt (2).	Bolt at belt buckle (belt buckle/belt anchor fitting tensioner)	*BA91.40-P-1001-01T
4	Remove seat belt buckle (3).	Check for correct installation position of seat belt end fitting and seat belt buckle (3).
5	Install in the reverse order.

SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 223 with code Z07 (B7 armoring on special protection version)	Model 223 except code Z07 (B7 armoring on special protection version)
BA91.40-P-1001-01T	Bolt at belt buckle (belt buckle/belt anchor fitting tensioner)	Nm	35	35
