Remove/Install Front Seat Belt Buckle - AR91.40-P-1515S
Model 223
except code 562 (Driver seat belt buckle with integrated tensioning function)
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front seat (1). | AR91.10-P-1000S | |

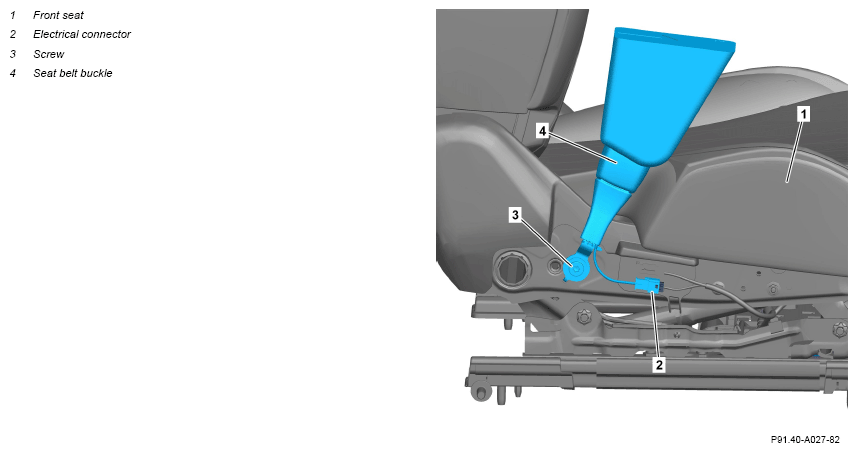

| 2 | Unclip electrical connector (2). | Fig 1 | |
| 3 | Disconnect electrical connection (2). | ||
| 4 | Remove screw (3) and remove seat belt buckle (4). | ||
| *BA91.40-P-1001-01T | |||
| 5 | Install in the reverse order. |
SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | Model 223 except code Z07 (B7 armoring on special protection version) |
|
|---|---|---|---|---|
| BA91.40-P-1001-01T | Bolt at belt buckle (belt buckle/belt anchor fitting tensioner) | Nm | 35 | 35 |
