Remove/Install Driver Knee Airbag - AR91.60-P-0200S
Model 223
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Adjust steering column upward. | ||
| 2 | Adjust driver seat to the rear. | ||
| 3 | Disconnect ground line of battery of 12 V on-board electrical system. | AR54.10-P-0051S | |

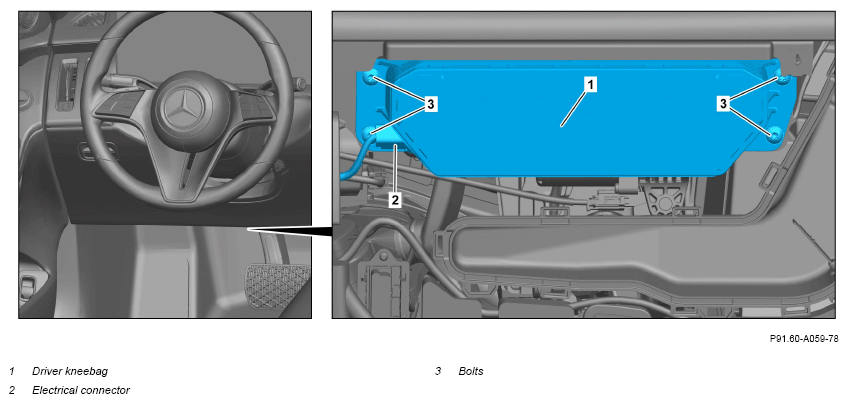

| 4 | Release trim under driver's side instrument panel and expose driver knee airbag (1). | AR68.10-P-1501S | |
| 5 | Release and disconnect electrical connector (2). | Fig 2 | |
| 6 | Unscrew screws (3) and remove driver knee airbag (1). | *BA91.60-P-1003-01I | |
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR |
AIRBAG
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA91.60-P-1003-01I | Bolt, knee airbag to crossmember | Nm | 6 |
