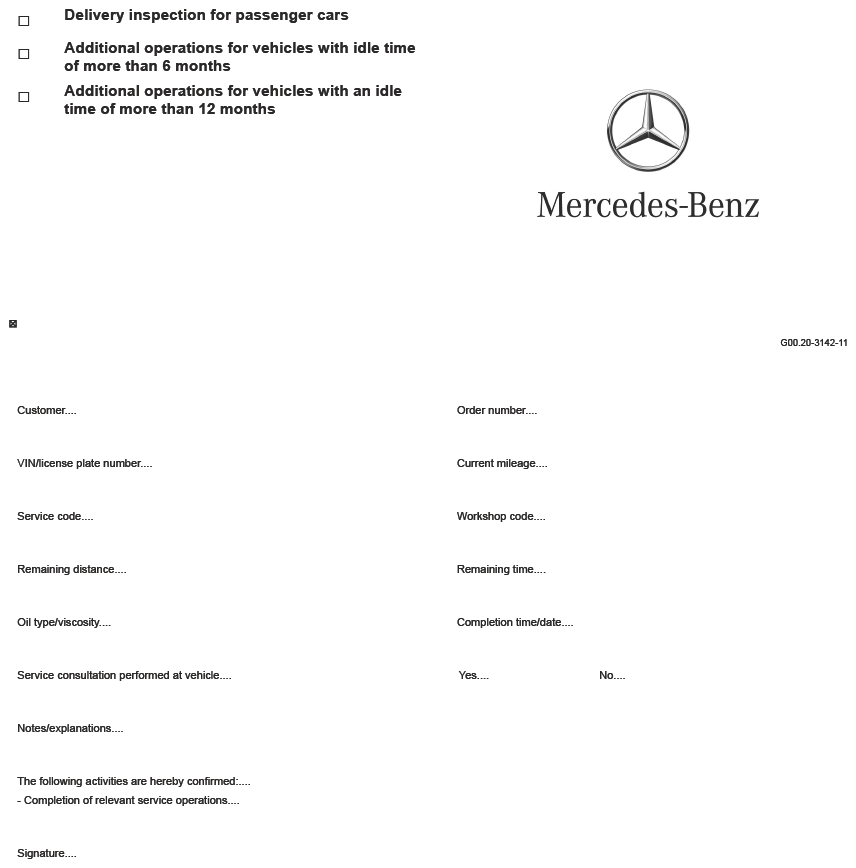

Perform Delivery And Hand-Over Inspection - AP00.20-P-1100D

Model 206, 214, 223, 232, 243, 254

Courtesy of MERCEDES-BENZ USA

A	Z6	Z12		Input condition not OK:	ⓧ
Completed
[X]	[X]	[X]

			General
□			The event log "Perform delivery inspection for new vehicles" is available in completed form.	Model 206, 214, 223, 232, 254	◦	AP00.20-P-1101C
				Model 243 The event log "Perform delivery inspection for new vehicles" is processed in the upstream sales or logistics department. There must be no unresolved problems.		AP00.20-P-1101A
□			The car delivery inspection is available on the information and communications platform (I & C platform as an app in the Retail Portal).	Only for Germany. Under "Search" enter the term "Delivery inspection". All documents marked with a green box are valid. To be performed by the service advisor. http://retailportal.i.daimler.com Only carry out delivery inspection shortly before vehicle handover.
□			Check vehicle for any unresolved service measures.	To be performed by the service advisor. If problems are determined, ↓ conduct unresolved service measures. After obtaining special order.	◦
□			Confirm verification of delivery inspection in Digital Service Booklet.	Only in markets with Digital Service Booklet. To be performed by the service advisor.
□			If the vehicle needs to be moved, pay attention to engine and transmission operation.	If problems are determined, ↓ Perform fault detection and extended diagnosis. After obtaining special order.	◦
			Vehicle exterior, body (cleaned, transport protection removed)
□			Check condition of wiper blades and wiping pattern.	Model 206, 214, 223, 232, 254	◦	AP82.30-P-8253A
				Model 243 If problems are determined, ↓ Rectify problem. After obtaining special order.		AP82.30-P-8253G
□			Detach protective foil of maintenance display from wiper blades.	Vehicle with maintenance display on wiper blades.
				Model 206, 214, 223, 232, 254		AP82.30-P-8253A
				Model 243		AP82.30-P-8253G
			Engine compartment
□			Check engine oil level.		◦
				Engine 139, 176, 177, 254, 256, 279, 654, 656 If the engine oil is checked via the instrument cluster, the engine oil temperature must be > 60°C. Otherwise, the measurement may be faulty and an incorrect oil filling capacity may be displayed.		AP18.00-P-1848U
□			Check main circuit coolant level in expansion reservoir.		◦	AP20.30-P-2049U
□			Windshield washer system: Check/correct fluid level.	When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8249U
□			Check all visible parts in engine compartment for damage and fluid loss.		◦
				Model 206 with engine 254, 654		AP00.20-P-0055CC
				Model 206 with engine 139		AP00.20-P-0055CD
				Model 214		AP00.20-P-0055O
				Model 223		AP00.20-P-0055K
				Model 232		AP00.20-P-0055L
				Model 243		AP00.20-P-0055M
				Model 254		AP00.20-P-0055T
			Tires, brakes
□			Check tire pressure, correct if necessary and enter measurement values in table, except for spare wheel.	Model 206, 214, 223, 232, 254	◦	AP40.15-P-4061D
				Model 243 With AMG Entry vehicle or AMG Performance vehicle, set tire pressure to partial load up to 250 km/h.		AP40.15-P-4061EQ
□			Attach wheel detachable parts.	Vehicle with wheel detachable parts. Check for correct positioning of wheel detachable parts relative to valve and for tight seating. Otherwise, the valve will be damaged or the wheel detachable parts will be lost and other property damage may occur.	◦
□			Assess condition of brake disks and enter evaluation in table.		◦	AP42.10-P-4249U
			Underside of vehicle
□			Remove suspension travel limiters.	Model 232		AP32.25-P-3270C
			Vehicle interior
□			Confirm vehicle handover in instrument cluster.	Only in the event that a vehicle is about to be immediately handed over to the customer.
□			Check time setting of clock; adjust if necessary.		◦
□			Check horn for proper operation.		◦
□			Check warning and function indicator lamps in instrument cluster.		◦	AP54.30-P-5449U
□	□	□	Check charge level of high-voltage battery.	Model 206, 214, 223, 232 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Model 243	◦	SI54.10-P-0024A
			Transport mode
□			Deactivate transport mode and enter remaining service life/standby of battery in table.		◦
				Vehicle with activated transport mode. Model 206, 214, 223, 232, 254		AR54.00-P-0001LWE
				Model 243		AR54.00-P-0001MFA
□			Check charge level of on-board electrical system battery using instrument cluster.		◦
				Vehicle without activated transport mode. Model 206, 214, 223, 232, 254		AP00.20-P-0046D
				Model 243 except code 521 (Connect 20 Mid (NTG7)) except code 525 (Connect 20 High (NTG7)) Select "Vehicle data" panel in driver's display and read out state of charge of battery with several consumers, such as low beam, hazard warning light and radio, switched on. If the permissible charge level of the 12 V on-board electrical system battery is exceeded ↓ Charge on-board electrical system battery and then perform a battery test. After obtaining special order.		AP00.20-P-0046C
			Miscellaneous
□			Enter any other faults into table.		◦
			Additional operations with idle time of more than 6 months
	□		Renew brake fluid.
				Model 206, 214, 223, 254		AP42.00-P-4280H
				Model 232		AP42.00-P-4280J
				Model 243		AP42.00-P-4280I
			Additional operations with non-operational time of more than 12 months
		□	Replace AdBlue®.
				Vehicle with AdBlue®. Model 206, 214, 254 with engine 654 Model 214, 223 with engine 656 Model 206, 214, 254 with engine 654		AR49.20-P-2015WTD
				Model 223 with engine 656		AR49.20-P-2015S
		□	Engine: Change oil and oil filter.	Model 206, 214, 223, 232, 254		AP18.00-P-1846U

TRANSPORT MODE INDICATOR (IDLE TIME)

Standby (remaining idle time)

CONDITION OF BRAKE DISKS

Mark applicable field with x.	Right front	Left front	Right rear	Left rear
Condition in visible area OK.
Damaged (e.g.: score marks, cracks, chippings, deeply contoured ridging on steel disk brakes)
Dirty (oil, grease, etc.)/damaged.

SET TIRE PRESSURE IN KPA OR PSI (100 KPA = 1 BAR)

	Front axle	Rear axle	Spare tire
kPa/psi

MISCELLANEOUS
