Check All Visible Parts In Engine Compartment For Damage And Fluid Loss - AP00.20-P-0055K

Model 223

Courtesy of MERCEDES-BENZ USA

Shown on engine 176 in model 223.176

Courtesy of MERCEDES-BENZ USA

Shown on engine 176 in model 223.176

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  from engine start by remote start function	Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes	AS00.00-Z-0024-01A
	Risk of injury  due to fan starting unexpectedly	Do not reach into the rotation area or danger zone of the fan. Wear closed and snug-fitting work clothes.	AS20.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Notice	Notes on battery		AH54.10-P-0001-01A
	Notes on evaluating leakages		AH00.00-P-0011-01KOA
	Remove

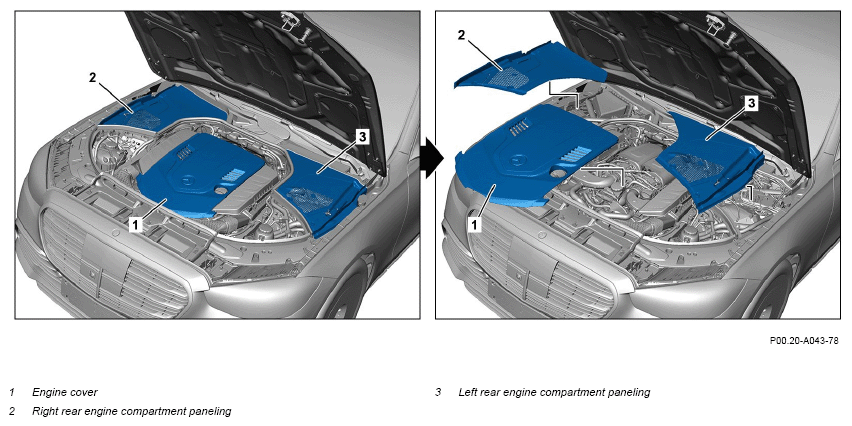

1	Remove left rear engine compartment trim (3).
2	Remove engine cover (1).	Model 223 with engine 176	AP01.10-P-2405-01OA
		Model 223 with engine 256	AP01.10-P-2405-01OB
		Model 223 with engine 279	AP01.10-P-2405-01Q
		Model 223 with engine 656	AP01.10-P-2405-01OC
3	Remove right rear engine compartment trim (2).
	Check

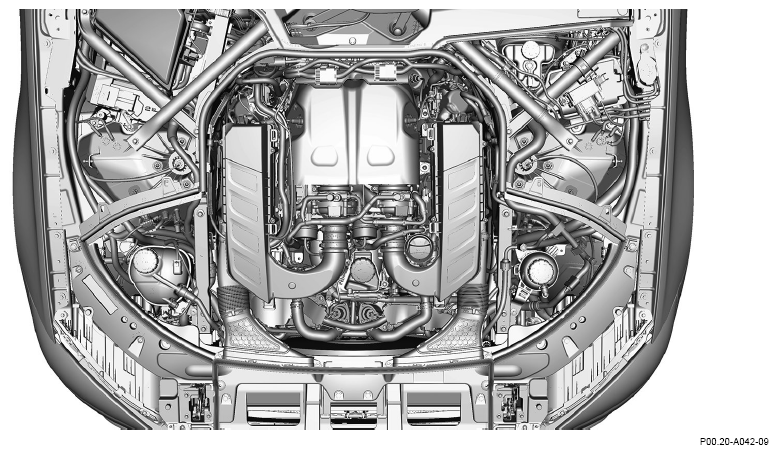

4	Check visible systems, component parts, lines and hoses in engine compartment for damage, routing, fluid loss, correct mounting and for corrosion.	If necessary, use commercially available devices/tools.  Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 Hood catch, Hood hinges and dampers, Brake system, Upper suspension strut mount, Suspension lines and sensors, Engine and mounted major assemblies, Cooling system, Heater and A/C system, Body reinforcements, Exhaust system, Exhaust aftertreatment, Heat shields, Fuel system, Front axle steering, Electrical components. If problems are determined, ↓ rectify the problems. After obtaining special order.
5	Check visible systems, component parts, lines and hoses in engine compartment for damage, routing, fluid loss, correct mounting and for corrosion.	Equipment-dependent. If necessary, use commercially available devices/tools.  Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 Inerting system, 48 V components, Stationary heater, Fire extinguishing system (special protection). If problems are determined, ↓ rectify the problems. After obtaining special order.
6	Check visible systems, component parts and body panels, lines and hoses in the engine compartment on vehicle underside for damage, routing, fluid loss, mounting and corrosion.	Model 223 except code Z07 (B7 armoring on special protection version)	AP00.20-P-0054M
		Model 223 with code Z07 (B7 armoring on special protection version)	AP00.20-P-0054SG
	Install
7	Install right rear engine compartment trim (2).
8	Install engine cover (1).	Model 223 with engine 176	AP01.10-P-2405-01OA
		Model 223 with engine 256	AP01.10-P-2405-01OB
		Model 223 with engine 279	AP01.10-P-2405-01Q
		Model 223 with engine 656	AP01.10-P-2405-01OC
9	Install left rear engine compartment trim (3).
