Check All Visible Parts Of Vehicle Underside For Damage And Fluid Loss - AP00.20-P-0054SG
Model 223 with code Z07 (B7 armoring on special protection version)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code M005 (Vehicles with 4MATIC/all-wheel drive)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code M005 (Vehicles with 4MATIC/all-wheel drive)
Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation area or danger zone of the fan. Wear closed and snug-fitting work clothes. | AS20.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on evaluating leakages | AH00.00-P-0011-01KOA | ||
| Preparatory tasks | |||
| 1 | Lift vehicle with vehicle lift. | ||
| AR00.60-P-1006A | |||
| Check | |||
| 2 | Check underfloor paneling for damage from driving over obstacles or from bottoming damage. | If it is suspected that there is damage from driving over obstacles or bottoming, ↓ Check front axle steering for mechanical damage. If the front axle steering is mechanically damaged, ↓ replace front axle steering for safety reasons. |
|

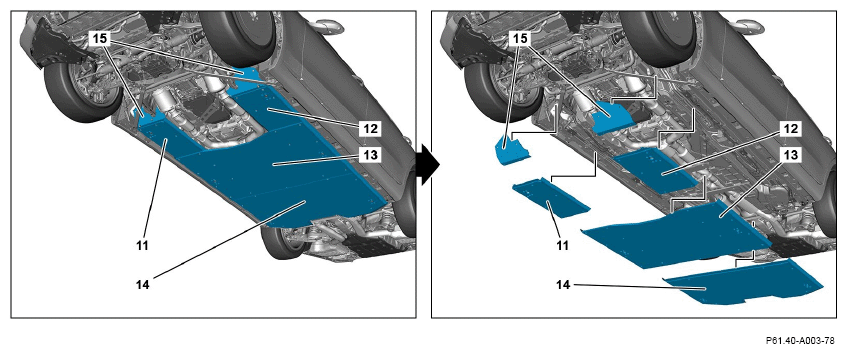

| 3 | Check technical underbody protection. | AP61.40-P-6130S | |
| 4 | Check cover caps of atomizer nozzle. | If problems are determined, ↓ rectify the problems. |
|
| Remove | |||

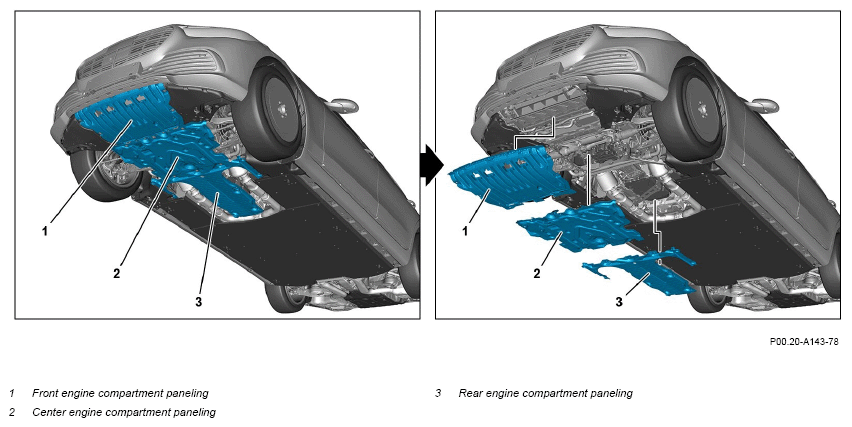

| 5 | Remove front engine compartment lining (1), center engine compartment lining (2) and rear engine compartment lining (3). | ||
| AR61.20-P-1105S | |||
| 6 | Remove technical underbody protection. | ||
| AR61.40-P-1001S | |||
| Check | |||

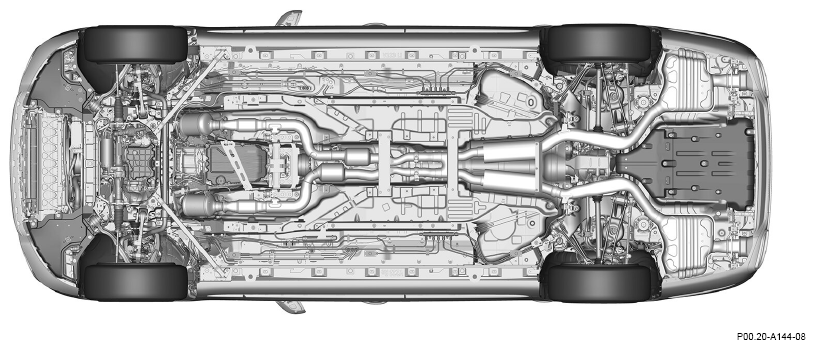

| 7 | Check visible systems, component parts, lines and hoses of the drive train on the underfloor for damage, correct routing, fluid loss, correct mounting and corrosion. | If problems are determined, ↓ rectify the problems. |
|
| 8 | Check visible systems, component parts, lines and hoses on the underfloor for damage, correct routing, fluid loss, correct mounting and corrosion. | Equipment-dependent. If problems are determined, ↓ rectify the problems. |
|
| 9 | Check underfloor and visible component parts on underfloor for damage, routing, mounting and corrosion. | Underfloor paneling, Underfloor. If problems are determined, ↓ rectify the problems. |
|
| 10 | Check visible body panels for corrosion and deformation. | If problems are determined, ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints. |
|
| Install | |||
| 11 | Install technical underbody protection. | ||
| AR61.40-P-1001S | |||
| 12 | Install front engine compartment lining (1), center engine compartment lining (2) and rear engine compartment lining (3). | ||
| AR61.20-P-1105S |
