Outer Side Longitudinal Member - Separation - Ar63.30-P-1050-01S

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 03 39 00 Rivet die		WS60.00-P-0386K

Model 223.0/1

Model 223.9

The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

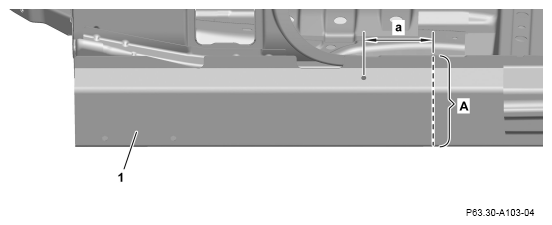

1. Mark separating point on outer side longitudinal member (1) and separate (area A).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   a = 133 mm

2. Transfer separating point to inner side longitudinal member and mark.

   Marking serves as reference line for positioning openings for inserting rivets.

   Courtesy of MERCEDES-BENZ USA

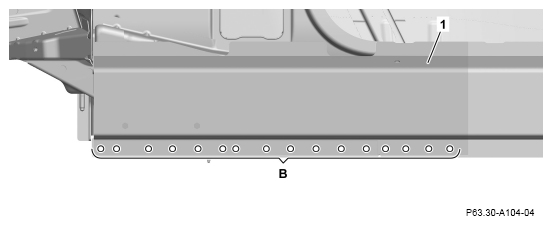

3. Press out self-piercing rivets on outer side longitudinal member (1) using a rivet press tool (area B).

   Courtesy of MERCEDES-BENZ USA

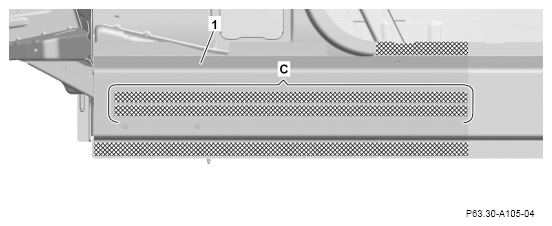

4. Heat outer side longitudinal member (1) in the cross-hatched areas.

   Heat outer side longitudinal member (1) on inside (areas C).

   Cross-hatched areas are bonded with adhesive.

5. Remove outer side longitudinal member (1).

   Courtesy of MERCEDES-BENZ USA

6. Remove noise protection mat in working area.

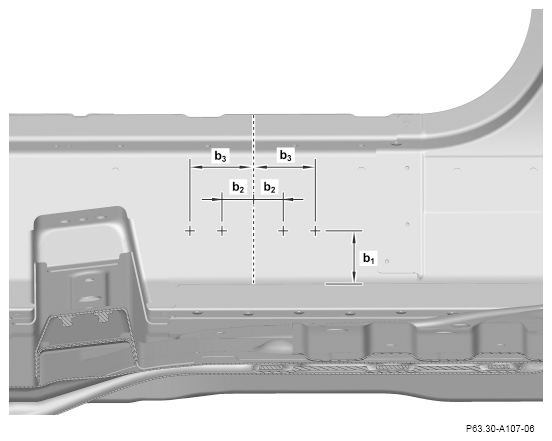

7. Mark positions of openings for inserting rivets on inner side longitudinal member.

   Dimensions:

   b₁ = 56 mm

   b₂ = 30 mm

   b₃ = 63 mm

8. Prepare openings with Ø 14 mm on inner side longitudinal member.
9. Grind mating surfaces in area of openings down to bare metal.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

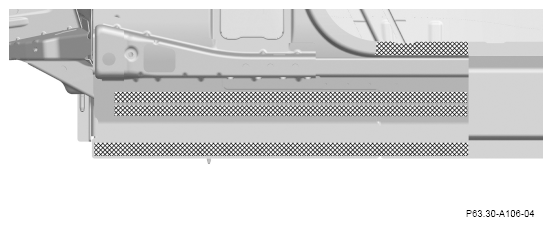

10. Grind mating surfaces down to bare metal in cross-hatched areas.

    Observe pretreatment of bonding surfaces.

11. Remove grinding dust and drill chips.

    Courtesy of MERCEDES-BENZ USA
