Inner Rear Wheel Well End Plate Installation - Ar63.10-P-6070-07S

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 03 39 00 Rivet die		WS60.00-P-0386K

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

Countersunk-head rivet (Z)

• Z₁ = countersunk-head rivet 6.4x14.0
• Z₂ = countersunk-head rivet 6.4x15.5
• Z₃ = countersunk-head rivet 6.4x17.0
• Z₄ = countersunk-head rivet 6.4x19.0
• Z₅ = countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = blind rivet 6.4x12.0
• Y₂ = blind rivet 6.5x12.5
• Y₃ = blind rivet 6.5x14.5
• Y₄ = Blind rivet 6.4 M6
• Y₅ = blind rivet 6.4
• Y₆ = blind rivet 6.5X13.5
• Y₇ =blind rivet 6.4x14.0
• Y₈ =blind rivet 6.4x17.0
• Y₉ =Blind rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Flow-form rivet structure with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V1 = rivet 3.2x4.5
• V2 = rivet 3.2x6.5

Blind rivet (U)

• U1 = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T1 = Blind rivet with countersunk head with 3.0 mm to 5.0 mm clamping range
• T2 = Blind rivet with countersunk head with 1.5 mm to 3.0 mm clamping range

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.

Courtesy of MERCEDES-BENZ USA

1. Install, fit and fix in place wheel well closer plate (1).

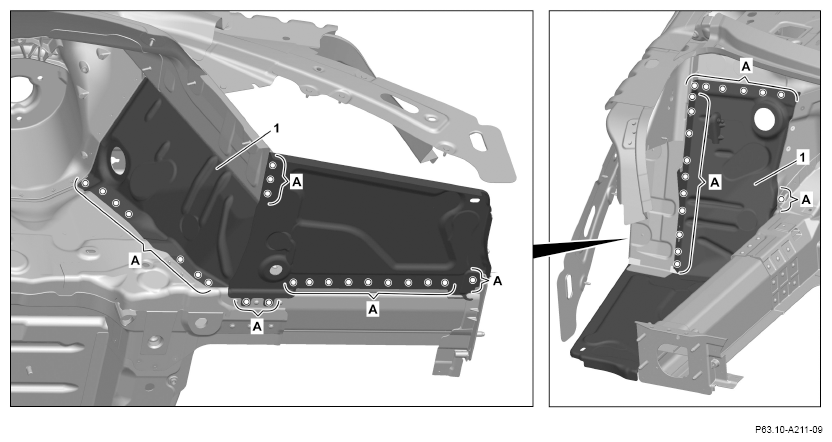

2. Drill rivet holes in wheel well cover plate (1) with Ø 6.7 mm (areas A).
3. Remove wheel well cover plate (1).
4. Deburr rivet holes in wheel well closer plate (1) and body on both sides.
5. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

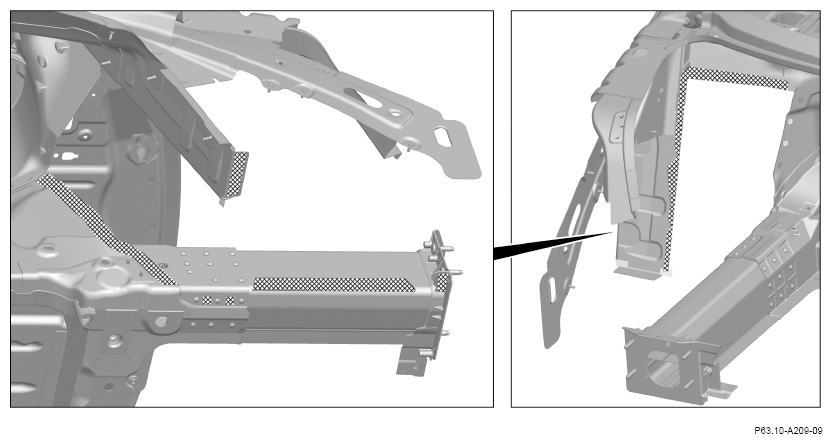

6. Apply 2-component adhesive to body in cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

7. Install and fix wheel well striker plate (1) in place.

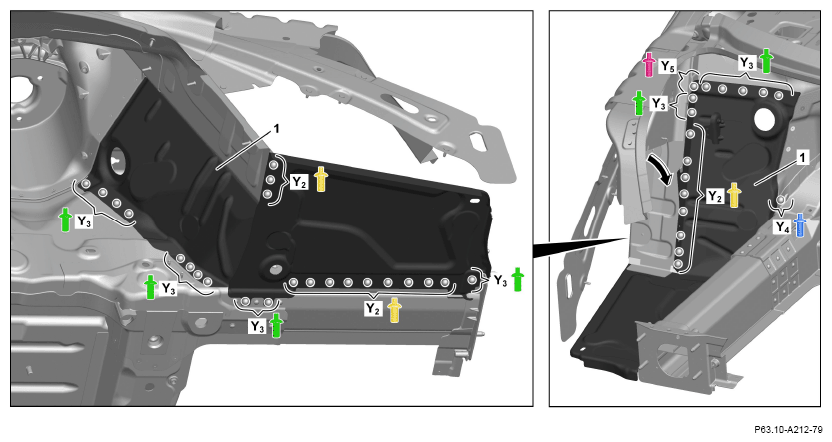

8. Rivet wheel well cover plate (1) with Ø 6.5x12.5 rivets (areas Y₂ ).
9. Rivet wheel well cover plate (1) with Ø 6.5x14.5 rivets (areas Y₃ ).
10. Rivet wheel well striker plate (1) with Ø 6.4 M6 rivet (area Y₄ ).
11. Rivet wheel well closer plate (1) with Ø 6.4 rivet (area Y₅ ).
12. Bend sheet metal lug closed in direction of arrow.
13. Install, fit and fix in place duplicator (3).

    Right side of vehicle.

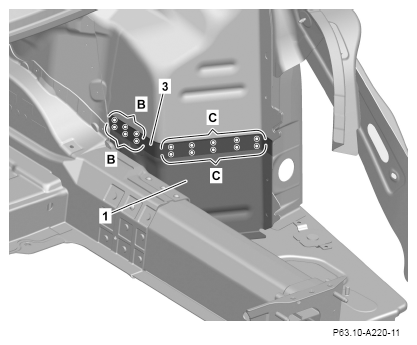

14. Drill rivet holes in duplicator (3) with Ø 6.7 mm (areas B).

    Right side of vehicle.

15. Punch rivet holes in duplicator (3) with Ø 6.0 mm using rivet press tool (areas C).

    Right side of vehicle.

16. Remove duplicator (3).

    Right side of vehicle.

17. Deburr rivet holes at duplicator (3) and at wheel well cover plate (1) on both sides.

    Right side of vehicle.

18. Remove drilling chips.

    Right side of vehicle.

    Right side of vehicle

    Courtesy of MERCEDES-BENZ USA

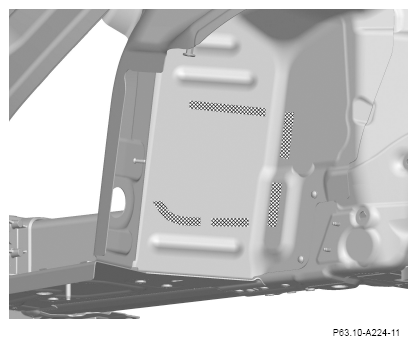

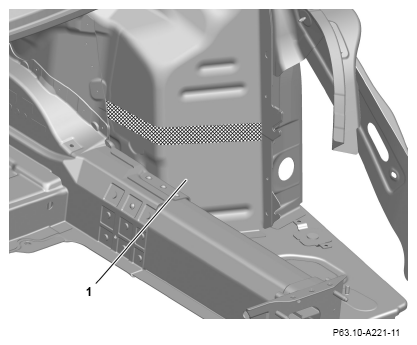

19. Apply 2-component adhesive on wheel well cover plate (1) and body in cross-hatched area.

    Right side of vehicle.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Right side of vehicle

    Courtesy of MERCEDES-BENZ USA

20. Install duplicator (3) and fix in place.

    Right side of vehicle.

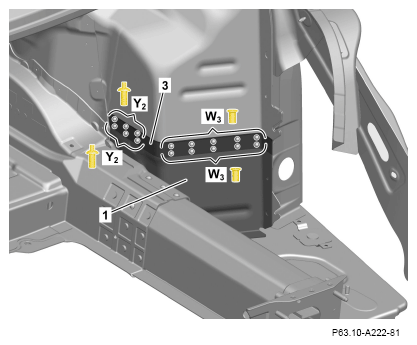

21. Rivet duplicator (3) with Ø 6.5x12.5 rivets (areas Y₂ ).

    Right side of vehicle.

22. Rivet duplicator (3) and wheel well cover plate (1) with flow form rivets structure 3.35 mm up to 4.1 mm clamping range (areas W₃ ).

    Right side of vehicle.

    Right side of vehicle

    Courtesy of MERCEDES-BENZ USA

23. Install, fit and fix in place holder (2).

    Right side of vehicle.

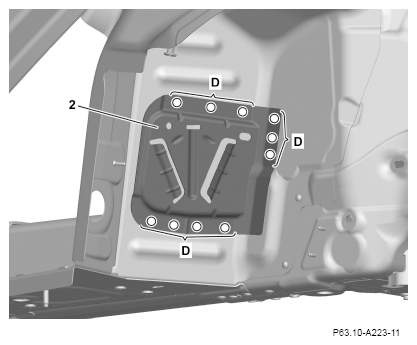

24. Drill rivet holes in holder (2) with Ø 6.7 mm (areas D).

    Right side of vehicle.

25. Remove holder (2).

    Right side of vehicle.

26. Deburr rivet holes on holder (2) and on body on both sides.

    Right side of vehicle.

27. Remove drilling chips.

    Right side of vehicle.

    Right side of vehicle

    Courtesy of MERCEDES-BENZ USA

28. Apply 2-component adhesive to body in cross-hatched areas.

    Right side of vehicle.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Right side of vehicle

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

    Right side of vehicle

29. Install holder (2) and fix in place.

    Right side of vehicle.

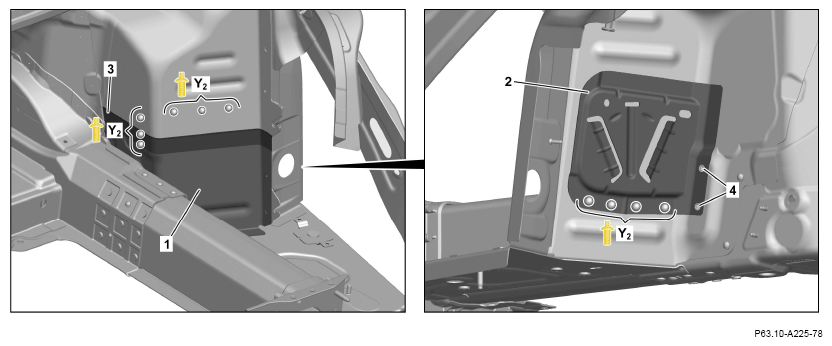

30. Rivet duplicator (3), holder (2) and wheel well cover plate (1) with Ø 6.5x12.5 rivets (areas Y₂ ).

    Right side of vehicle.

31. Turn in screws 3.5x13 (4).

    Right side of vehicle.
