Inner A-Pillar Installation - Ar63.20-P-1106-03S
| 000 588 04 39 00 Rivet press tool | WS60.00-P-0440B | ||
| 000 588 03 39 00 Rivet die | WS60.00-P-0386K |
Model 223.0/1
Model 223.9
Countersunk-head rivet (Z)
- Z1 = countersunk-head rivet 6.4x14.0
- Z2 = countersunk-head rivet 6.4x15.5
- Z3 = countersunk-head rivet 6.4x17.0
- Z4 = countersunk-head rivet 6.4x19.0
- Z5 = countersunk-head rivet 6.4x21.0
Blind rivet (Y)
- Y1 = rivet 6.4x12
- Y2 = rivet 6.5x12.5
- Y3 = rivet 6.5x14.5
- Y4 = Rivet 6.4M6
- Y5 = Rivet 6.4
- Y6 = rivet 6.5x13.5
- Y7 = rivet 6.4x14
- Y8 = rivet 6.4x17
- Y9 = rivet 6.4x20
Flow-form rivet with countersunk head (X)
- X1 = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
- X2 = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
- X3 = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
- X4 = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
- X5 = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
- X6 = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
- X7 = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range
Flow-form rivet (W)
- W1 = Flow-form rivet structure with 3.5 mm clamping range
- W3 = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
- W4 = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
- W5 = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
- W6 = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
- W7 = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range
Blind rivet (V)
- V1 = rivet 3.2x4.5
- V2 = rivet 3.2x6.5
Blind rivet (U)
- U1 = rivet 3.2x9.5
Blind rivet with countersunk head (T)
- T1 = blind rivet with countersunk head 3.0 mm to 5.0 mm clamping range
- T2 = blind rivet with countersunk head 1.5 mm to 3.0 mm clamping range
The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.
The superordinate service document as well as the safety information in the service document must be observed.
The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.
- Transfer existing holes in the body to the inner A-pillar (2) with drill hole finder (area A).
- Install, fit and fix in place inner A-pillar (2).
- Drill rivet holes in inner A-pillar (2) with Ø 6.7 mm (areas A, B).
- Countersink rivet holes (area B).
- Punch rivet holes in the inner A-pillar (2) with Ø 6.0 mm with rivet press tool (area C).

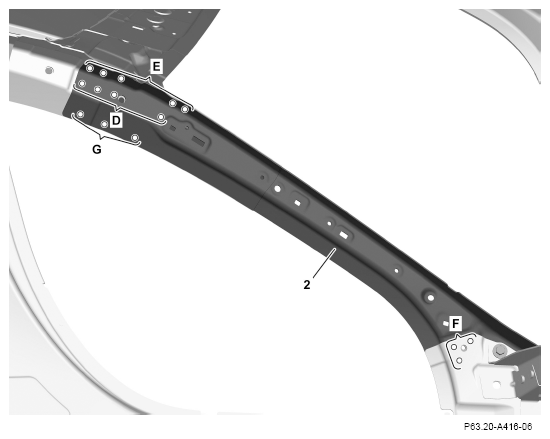

- Drill rivet holes in the inner A-pillar (2) with Ø 6.7 mm (areas D, E, F).
Drill rivet holes through existing holes in the body (areas E, F).
- Countersink rivet holes from outside (area E).
- Punch rivet holes in the inner A-pillar (2) with Ø 6.0 mm with rivet press tool (area G).
- Remove inner A-pillar (2).
- Deburr rivet holes at inner A-pillar (2) and body on both sides.
- Remove drilling chips.

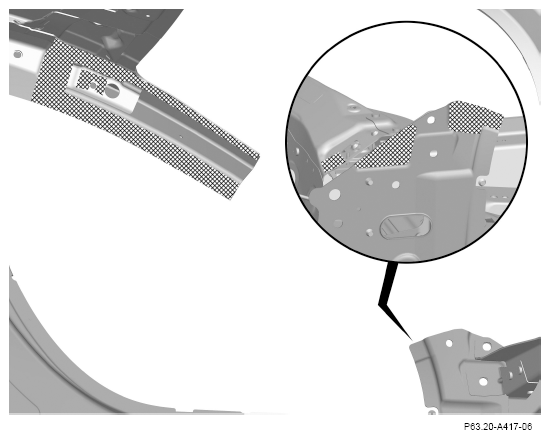

- Apply 2-component adhesive to body in cross-hatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install and fix in place inner A-pillar (2).

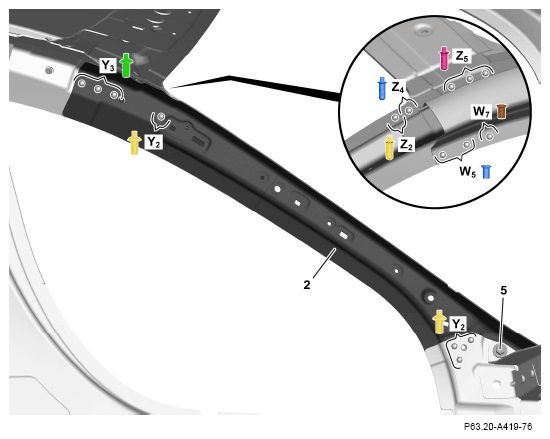

- Rivet inner A-pillar (2) with rivets Ø 6.5x12.5 (area Y2 ).
- Rivet inner A-pillar (2) with countersunk-head rivets Ø 6.4x15.5 (area Z2 ).

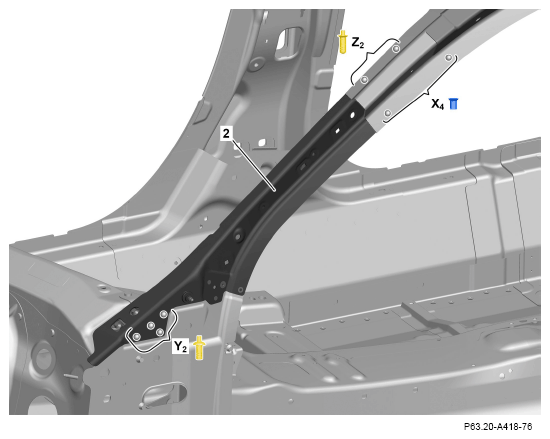

- Rivet inner A-pillar (2) with flow-form rivet with countersunk head 4.0 mm to 5.15 mm clamping range (area X4
).
- Rivet inner A-pillar (2) with rivets Ø 6.5x12.5 (areas Y2 ).
- Rivet inner A-pillar (2) with rivets Ø 6.5x14.5 (area Y3 ).
- Rivet inner A-pillar (2) with countersunk-head rivet Ø 6.4x15.5 (area Z2 ).
- Rivet inner A-pillar (2) with countersunk-head rivet Ø 6.4x19.0 (area Z4 ).
- Rivet inner A-pillar (2) with countersunk-head rivets Ø 6.4x21.0 (area Z5 ).
- Rivet inner A-pillar (2) with flow-form rivet structure 5.0 mm to 6.1 mm clamping range (area W5 ).
- Rivet inner A-pillar (2) with flow-form rivet structure 7.1 mm to 8.3 mm clamping range (area W7
).
