C-Pillar Installation - Ar63.20-P-0500-03SZ

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 03 39 00 Rivet die		WS60.00-P-0386K

Model 223.9

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.

Courtesy of MERCEDES-BENZ USA

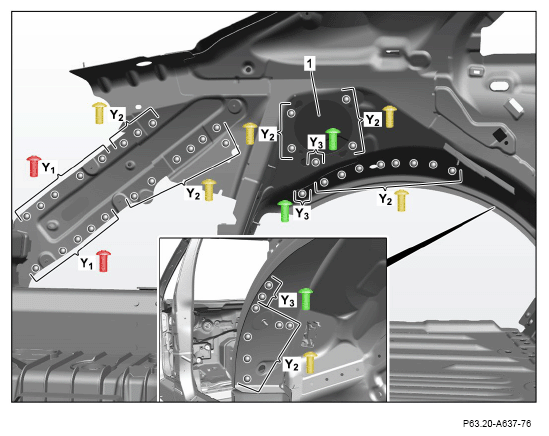

Countersunk-head rivet (Z)

• Z₁ = countersunk-head rivet 6.4x14.0
• Z₂ = countersunk-head rivet 6.4x15.5
• Z₃ = countersunk-head rivet 6.4x17.0
• Z₄ = countersunk-head rivet 6.4x19.0
• Z₅ = countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = rivet 6.4x12
• Y₂ = rivet 6.5x12.5
• Y₃ = rivet 6.5x14.5
• Y₄ = Rivet 6.4M6
• Y₅ = Rivet 6.4
• Y₆ = rivet 6.5x13.5
• Y₇ = rivet 6.4x14
• Y₈ = rivet 6.4x17
• Y₉ = rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X-i = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X2 = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X3 = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X4 = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X5 = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X6 = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X7 = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Flow-form rivet structure with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V₁ = rivet 3.2x4.5
• V₂ = rivet 3.2x6.5

Blind rivet (U)

• U₁ = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T₁ = blind rivet with countersunk head 3.0 mm to 5.0 mm clamping range
• T₂ = blind rivet with countersunk head 1.5 mm to 3.0 mm clamping range

Courtesy of MERCEDES-BENZ USA

1. Install C-pillar (1), fit, and fix in place.

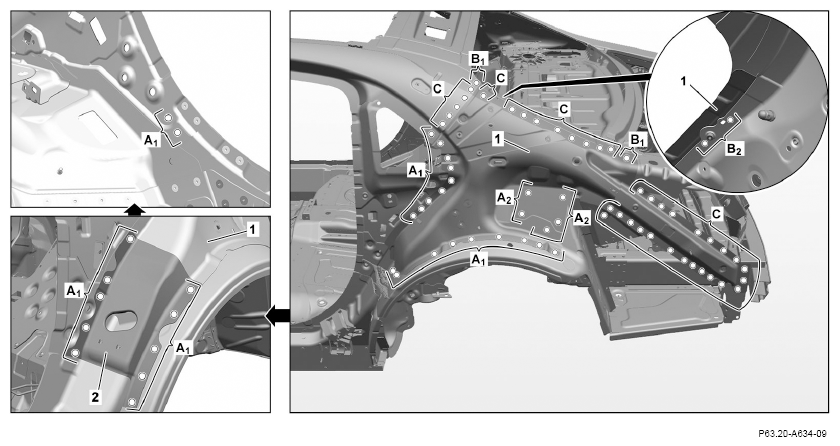

2. Punch rivet holes on C-pillar (1) with Ø 6.0 mm using rivet press tool (areas A₁ ).
3. Drill rivet holes on C-pillar (1) with Ø 6.7 mm (areas A₂ , B₁ , B₂ , C).
4. Countersink rivet holes on C-pillar (1) (areas B₁ , B₂ ).
5. Install reinforcement (2), fit and fix in place.
6. Punch rivet holes on C-pillar (1) with Ø 6.0 mm using rivet press tool (areas A₁ ).
7. Remove C-pillar (1) and reinforcement (2).
8. Deburr rivet holes on C-pillar (1), reinforcement (2) and body on both sides.
9. Remove drilling chips.

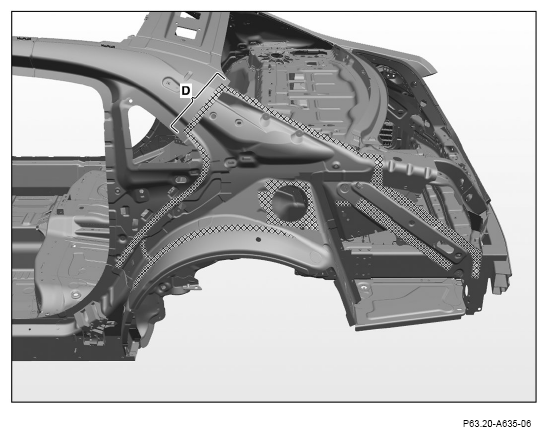

10. Apply 2-component adhesive to body in cross-hatched areas.

    Apply 2-component adhesive on inside (area D).

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

11. Install C-pillar (1) and fix in place.

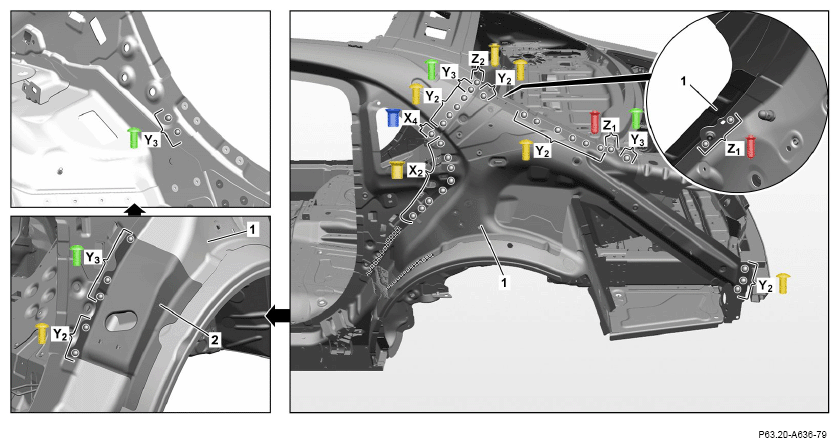

12. C-pillar (1) with flow-form rivet with countersunk head 4.0 mm to 5.15 mm (area X₄ ).
13. C-pillar (1) with flow-form rivet with countersunk head 2.3 mm to 3.5 mm (area X₂ ).
14. Rivet C-pillar (1) with countersunk-head rivet Ø 6.4x15.5 (area Z₂ ).
15. Rivet C-pillar (1) with countersunk-head rivets Ø 6.4x14.0 (areas Z₁ ).
16. Rivet C-pillar (1) with Ø 6.5x14.5 rivets (areas Y₃ ).
17. Rivet C-pillar (1) with Ø 6.5x12.5 rivets (area Y₂ ).
18. Install reinforcement (2), fit and fix in place.
19. Rivet reinforcement (2) with Ø 6.5x14.5 rivets (areas Y₃ ).
20. Rivet reinforcement (2) with Ø 6.5x12.5 rivets (areas Y₂ ).
21. Rivet C-pillar (1) with Ø 6.5x14.5 rivets (areas Y₃ ).
22. Rivet C-pillar (1) with Ø 6.5x12.5 rivets (area Y₂ ).
23. Rivet C-pillar (1) from inside with Ø 6.4x12 rivets (areas Y₁ ).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

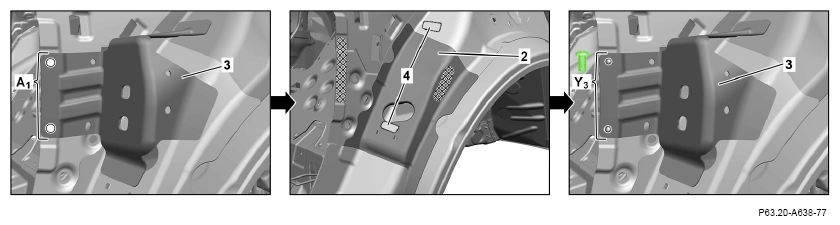

24. Install, fit and fix lock striker reinforcement (3) in place.
25. Punch rivet holes in lock striker reinforcement (3) with Ø 6.0 mm using rivet press tool (areas A₁ ).
26. Remove lock striker reinforcement (3).
27. Deburr rivet holes on lock striker reinforcement (3) and on body on both sides.
28. Attach damping (4) as shown.
29. Apply 2-component adhesive to body in cross-hatched areas.

    Apply 2-component adhesive on inside (area D).

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

30. Install, fit and fix lock striker reinforcement (3) in place.
31. Rivet lock striker reinforcement (3) with Ø 6.5x12.5 rivets (areas Y₂ ).
