Rear Longitudinal Member Installation - Ar64.20-P-1200-24S
| 000 588 04 39 00 Rivet press tool | WS60.00-P-0440B | ||
| 000 588 03 39 00 Rivet die | WS60.00-P-0386K |
Model 223.0/1
Model 223.9
Countersunk-head rivet (Z)
- Z1 = countersunk-head rivet 6.4x14.0
- Z2 = countersunk-head rivet 6.4x15.5
- Z3 = countersunk-head rivet 6.4x17.0
- Z4 = countersunk-head rivet 6.4x19.0
- Z5 = countersunk-head rivet 6.4x21.0
Blind rivet (Y)
- Y1 = rivet 6.4x12
- Y2 = rivet 6.5x12.5
- Y3 = rivet 6.5x14.5
- Y4 = Rivet 6.4M6
- Y5 = Rivet 6.4
- Y6 = rivet 6.5x13.5
- Y7 = rivet 6.4x14
- Y8 = rivet 6.4x17
- Y9 = rivet 6.4x20
Flow-form rivet with countersunk head (X)
- X1 = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
- X2 = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
- X3 = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
- X4 = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
- X5 = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
- X6 = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
- X7 = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range
Flow-form rivet (W)
- W1 = Flow-form rivet structure with 3.5 mm clamping range
- W3 = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
- W4 = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
- W5 = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
- W6 = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
- W7 = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range
Blind rivet (V)
- V1 = rivet 3.2x4.5
- V2 = rivet 3.2x6.5
Blind rivet (U)
- U1 = rivet 3.2x9.5
Blind rivet with countersunk head (T)
- T1 = blind rivet with countersunk head 3.0 mm to 5.0 mm clamping range
- T2 = blind rivet with countersunk head 1.5 mm to 3.0 mm clamping range
Welding variants
- EE = MIG seam weld
- FF = MIG plug weld
The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.
The superordinate service document as well as the safety information in the service document must be observed.
The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.
- Install rear longitudinal member (1), fit using straightener, and fix in place.

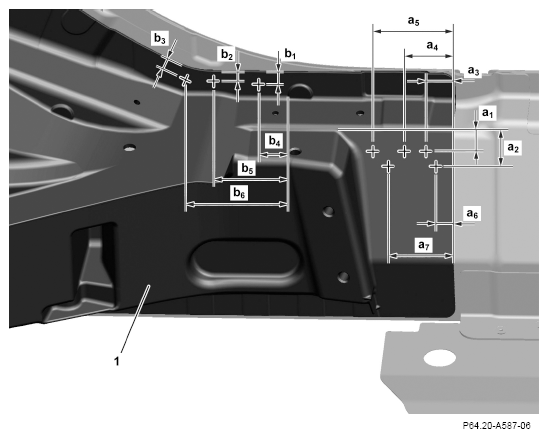

- Mark positions of rivet holes on rear longitudinal member (1) and mark on body.
Dimensions:
- a1 = 15 mm
- a2 = 32 mm
- a3 = 27 mm
- a4 = 48 mm
- a5 = 86 mm
- a6 = 13 mm
- a7 = 67 mm
- b1 = 17 mm
- b2 = 12 mm
- b3 = 12 mm
- b4 = 34 mm
- b5 = 73 mm
- b6 = 92 mm

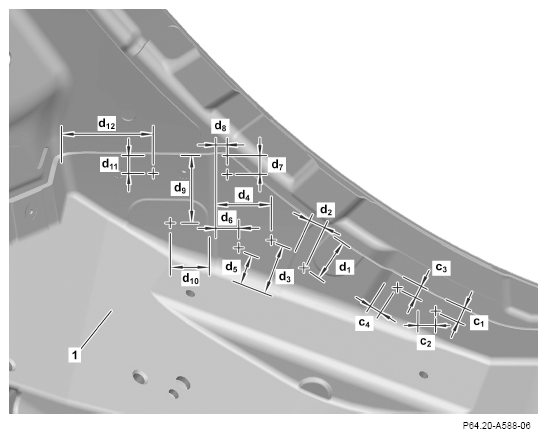

- Mark positions of rivet holes on rear longitudinal member (1) and mark on body.
Dimensions:
- c1 = 9 mm
- c2 = 10 mm
- c3 = 8 mm
- c4 = 9 mm
- d1 = 31 mm
- d2 = 8 mm
- d3 = 36 mm
- d4 = 32 mm
- d5 = 23 mm
- d6 = 14 mm
- d7 = 14 mm
- d8 = 8 mm
- d9 = 50 mm
- d10 = 24 mm
- d11 = 13 mm
- d12 = 58 mm

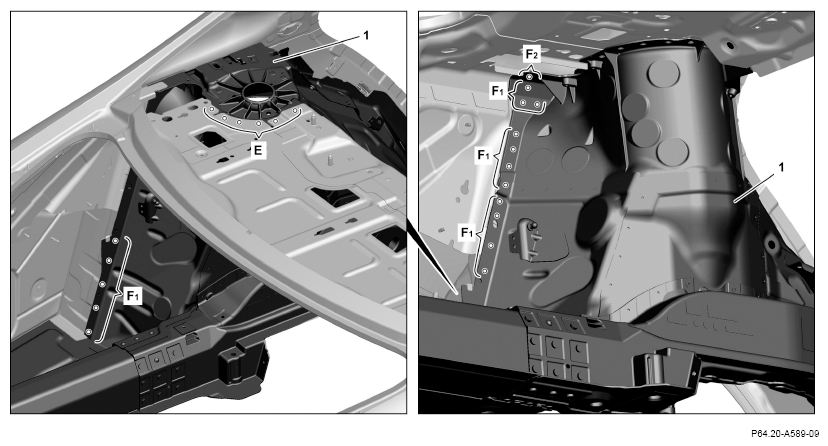

- Drill rivet holes on rear longitudinal member (1) with a ø 6.7 mm bit through existing holes in body (area E).
- Drill rivet holes on rear longitudinal member (1) with a ø 6.7 mm bit (areas F1 ).
- Drill hole for screw on rear longitudinal member (1) with a ø 6.5 mm bit (area F2
).

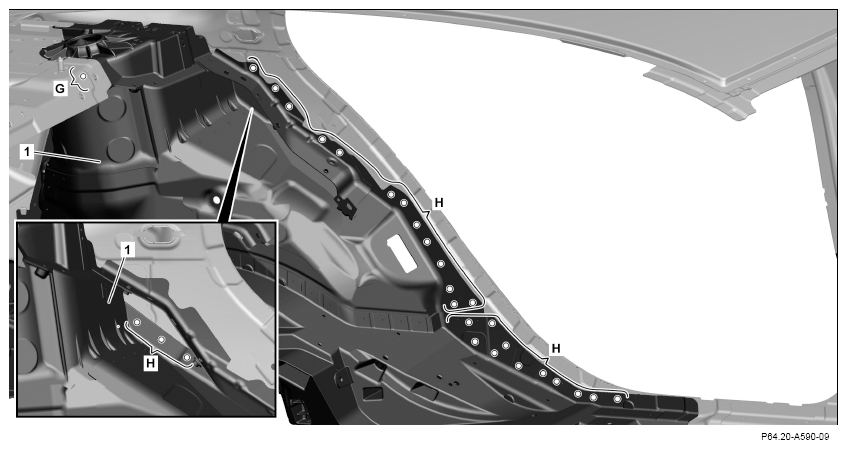

- Drill rivet hole on rear longitudinal member (1) with a ø 6.7 mm bit through existing hole in body (area G).
- Drill rivet holes on rear longitudinal member (1) with a ø 6.7 mm bit (areas H).

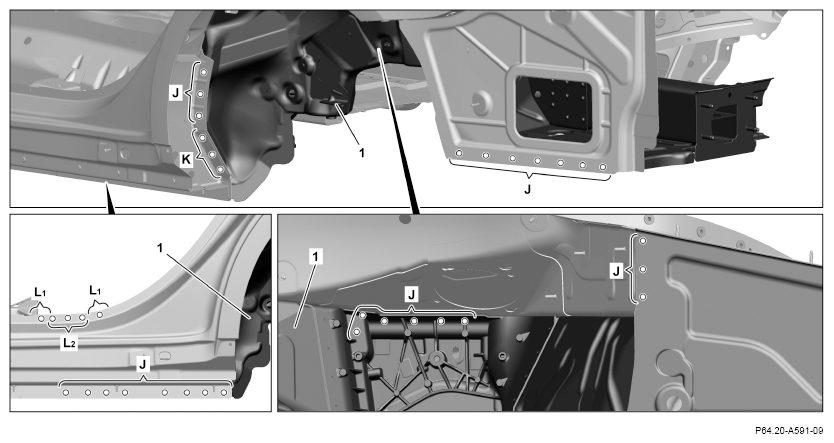

- Drill rivet holes on rear longitudinal member (1) with a ø 6.7 mm bit (areas J).
- Drill holes for screws on rear longitudinal member (1) with a ø 6.5 mm bit (area K).
- Punch rivet holes on rear longitudinal member (1) with ø 6.0 mm using rivet press tool (areas L1
, L2
).
Punch rivet holes on rear longitudinal member (1) approx. 3 mm higher than standard position (areas L1 ).

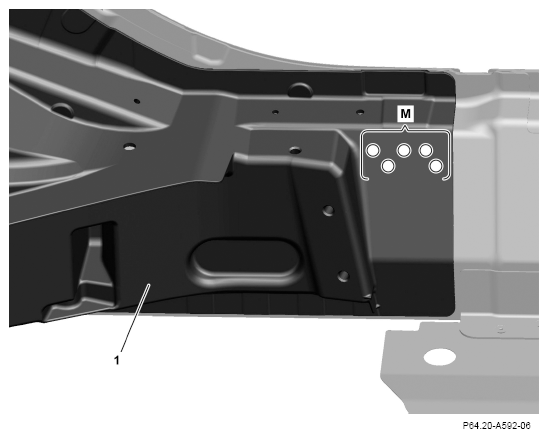

- Drill rivet holes on rear longitudinal member (1) with a ø 6.7 mm bit (area M).
- Remove straightener and remove rear longitudinal member (1).
- Deburr rivet holes on longitudinal member (1) and body on both sides.
- Remove drilling chips.

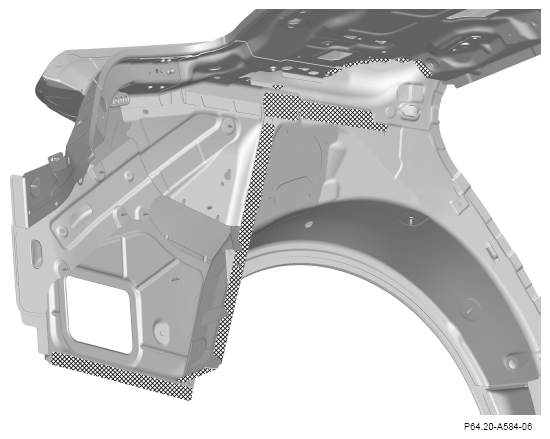

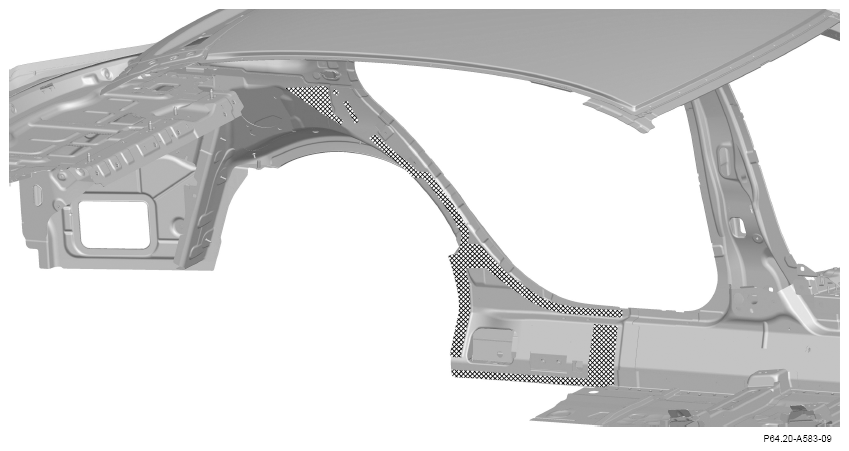

- Apply 2-component adhesive to body in cross-hatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Apply 2-component adhesive to body in cross-hatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install rear longitudinal member (1) and fix in place.

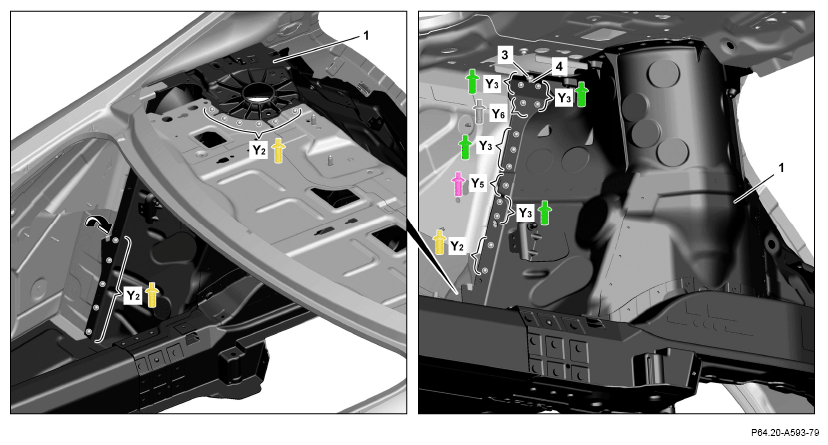

- Rivet rear longitudinal member (1) with rivets ø 6.5x12.5 (areas Y2 ).
- Rivet rear longitudinal member (1) with rivets ø 6.5x14.5 (areas Y3 ).
- Rivet rear longitudinal member (1) with ø.6.4x17.7 rivet (area Y5 ).
- Rivet rear longitudinal member (1) with ø 6.5x13.5 rivet (area Y6 ).
- Position screw M6x16 (4).
- Tighten nuts M6 (3).

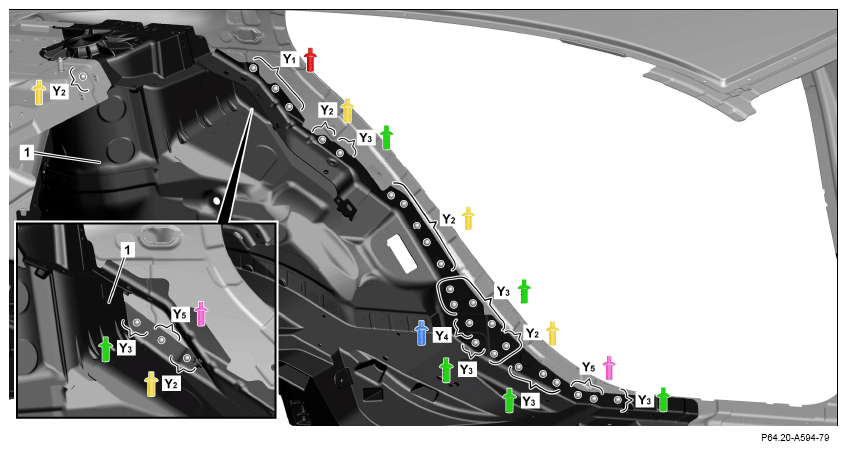

- Rivet rear longitudinal member (1) with ø 6.3x12.5 rivets (area Y1 ).

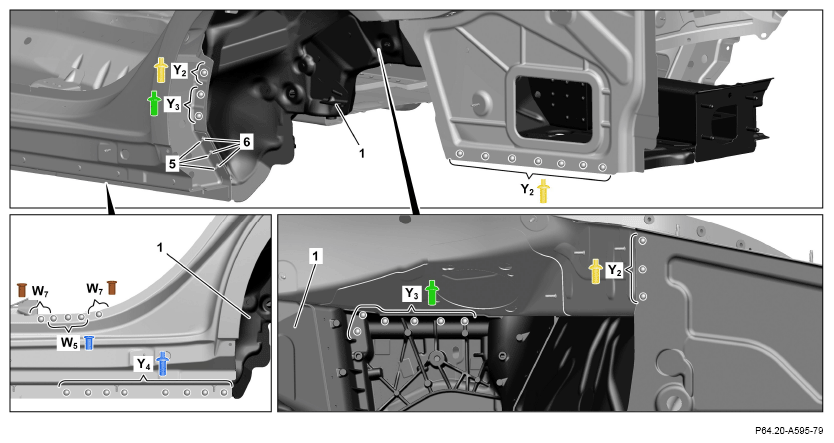

- Rivet rear longitudinal member (1) with rivets ø 6.5x12.5 (areas Y 2).
- Rivet rear longitudinal member (1) with rivets ø 6.5x14.5 (areas Y 3).
- Rivet rear longitudinal member (1) with ø 6.4x15.7 rivets (area Y4 ).
- Rivet rear longitudinal member (1) with ø 6.4x17.7 rivets (areas Y5
).
- Rivet rear longitudinal member (1) with rivets ø 6.5x12.5 (areas Y2 ).
- Rivet rear longitudinal member (1) with rivets ø 6.5x14.5 (areas Y3 ).
- Rivet rear longitudinal member (1) with ø 6.4x15.7 rivets (area Y4 ).
- Rivet rear longitudinal member (1) with structured flow form rivets with 5.0 mm to 6.1 mm clamping range (area W5 ).
- Rivet rear longitudinal member (1) with structured flow form rivets with 7.1 mm to 8.3 mm clamping range (areas W7 ).
- Position screws M6x20 (5).
- Tighten M6 nuts (6).

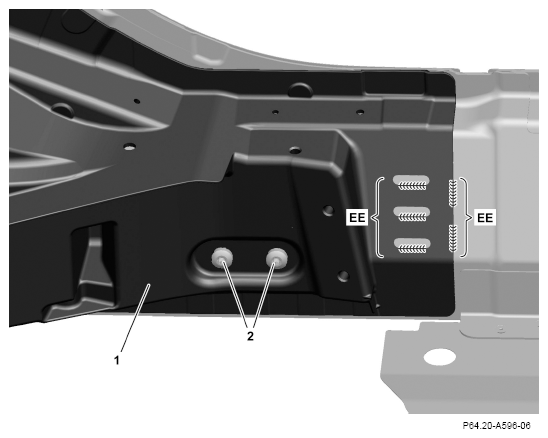

- Rear longitudinal member (1)
(areas EE).
Make weld seams at lower edge of elongated holes.
- Screw in screws (2).
