Upper Front Longitudinal Member Partial Installation - Ar62.20-P-1287-03S

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 03 39 00 Rivet die		WS60.00-P-0386K

Model 223

27.01.2021

Weld seam added.

Operation step 16

Courtesy of MERCEDES-BENZ USA

Countersunk-head rivet (Z)

• Z₁ = countersunk-head rivet 6.4x14.0
• Z₂ = countersunk-head rivet 6.4x15.5
• Z₃ = countersunk-head rivet 6.4x17.0
• Z₄ = countersunk-head rivet 6.4x19.0
• Z₅ = countersunk-head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = blind rivet 6.4x12.0
• Y₂ = blind rivet 6.5x12.5
• Y₃ = blind rivet 6.5x14.5
• Y₄ = Blind rivet 6.4 M6
• Y₅ = blind rivet 6.4
• Y₆ = blind rivet 6.5X13.5
• Y₇ = blind rivet 6.4x14.0
• Y₈ = blind rivet 6.4x17.0
• Y₉ = blind rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Flow-form rivet structure with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V₁ = rivet 3.2x4.5
• V₂ = rivet 3.2x6.5

Blind rivet (U)

• U1 = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T₁ = Blind rivet with countersunk head with 3.0 mm to 5.0 mm clamping range
• T₂ = Blind rivet with countersunk head with 1.5 mm to 3.0 mm clamping range

Welding variants

• EE = MIG seam weld
• FF = MIG plug weld

Courtesy of MERCEDES-BENZ USA

The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.

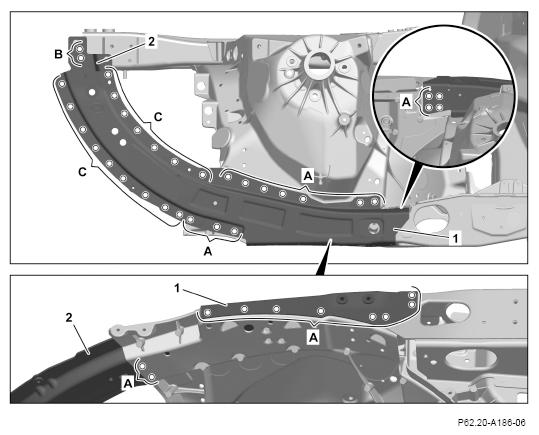

1. Install upper front longitudinal member (1) and lower front longitudinal member (2), fit with positioning device, and fix in place.
2. Drill rivet holes on upper front longitudinal member (1) and lower front longitudinal member (2) with a Ø 6.7 mm bit (areas A, B).
3. Countersink rivet holes on lower front longitudinal member (2) (area B).
4. Punch rivet holes o the front-top longitudinal member (1) and front bottom longitudinal member (2) with Ø 6.0 mm using a rivet press tool (area C).
5. Remove upper front longitudinal member (1), lower front longitudinal member (2), and positioning device.
6. Deburr rivet holes on upper front longitudinal member (1), lower front longitudinal member (2), and on body on both sides.
7. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

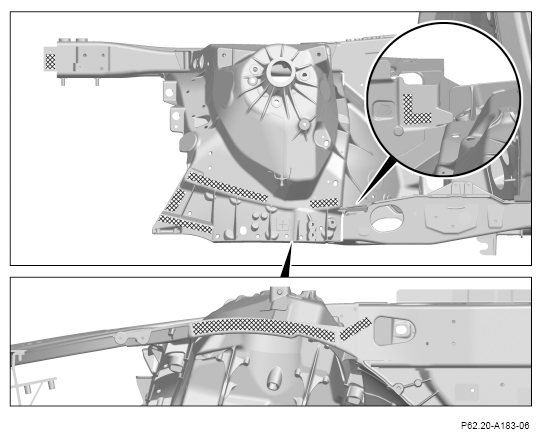

8. Apply 2-component adhesive to body in cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

9. Apply 2-component adhesive in cross-hatched areas on lower front longitudinal member (2).

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

10. Install upper front longitudinal member (1) and lower front longitudinal member (2) with positioning device and fix in place.
11. Rivet upper front longitudinal member (1) and lower front longitudinal member (2) with Ø 6.4 M6 rivets (areas Y₄ ).
12. Rivet upper front longitudinal member (1) and lower front longitudinal member (2) with rivets Ø 6.5x14.5 (areas Y₃ ).
13. Rivet upper front longitudinal member (1) with rivets Ø 6.5x12.5 (area Y₂ ).
14. Rivet upper front longitudinal member (1) and lower front longitudinal member (2) with countersunk-head rivet Ø 6.4x19.0 (area Z₄ ).
15. Rivet upper front longitudinal member (1) and lower front longitudinal member (2) with flow-form rivet structure with a 3.5 mm clamping range (areas W₁ ).

    Courtesy of MERCEDES-BENZ USA

16. Create MIG weld seam (area EE) on upper front longitudinal member (1).

    Only on right hand side of vehicle.

    Theft-relevant component.

17. Remove positioning device.

    Courtesy of MERCEDES-BENZ USA
