Remove/Install Brake Booster Vacuum Sensor - AR43.10-P-0352S
Model 223
except code 200 (Conditionally automated driving)
except code 503 (Remote-controlled parking)
except code ME10 (Hybrid vehicle (plug-in, PHEV))
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Operate brake pedal several times. | ||
| 3 | Release fuse and relay module in engine compartment and place to one side with housing. | AR54.15-P-0005S | |
| 4 | Disconnect electrical connector from dual brake vacuum sensor (B150/2). | ||

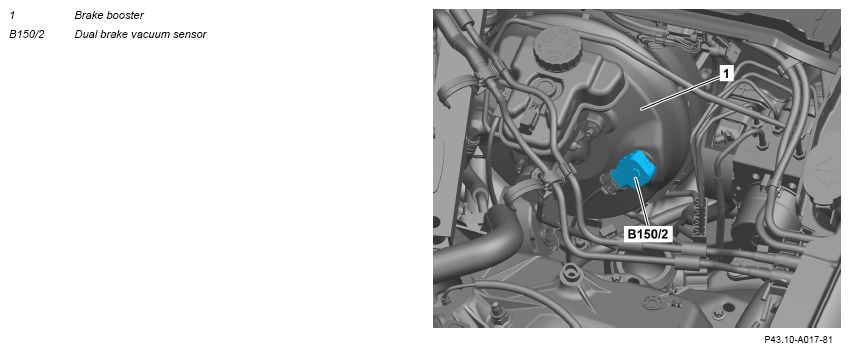

| 5 | Remove dual brake vacuum sensor (B150/2) from brake booster (1). | ||
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Start engine and depress brake pedal several times. | ||
| 8 | Switch off engine. | ||
| 9 | Check leak tightness of dual brake vacuum sensor (B150/2). |
