Remove/Install Brake Hose To Front Axle - AR42.10-P-0026S
Model 223
except code Z07 (B7 armoring on special protection version)
MODIFICATION NOTES
| 31.05.2023 | Brake hose to fixed or floating caliper | Model 223 with code ME10 model 223 with code Z07 | BA42.10-P-1005-04R |
| 12.10.2023 | Brake hose to fixed or floating caliper | BA42.10-P-1005-04R |

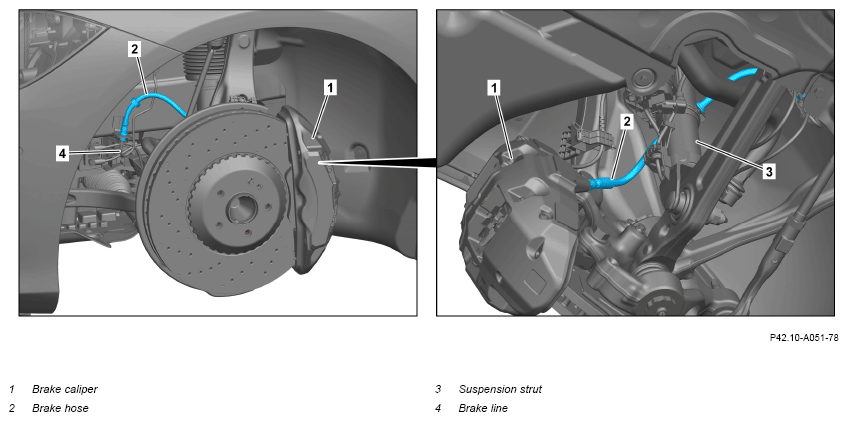

Fig 1: Brake Hose To Front Axle Components Location - Model 223 Except Code Z07 (Shown On Model 223.157 On Right Side)
Shown on model 223.157 on right side of vehicle except code 490 (Electrohydraulic suspension)
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Notes on installing brake hoses | AH42.10-P-9406-01LWO | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front wheel. | AR40.10-P-1102A | |
| 2 | Detach brake line (4) from brake hose (2) and seal connections with suitable stop plugs. | Seal connections immediately. Otherwise damage can be caused by escaping brake fluid. |
|
| *BA42.10-P-1003-04R | |||
| Fig 3 | |||
| Fig 4 | |||
| 3 | Unclip brake hose (2) from suspension strut (3). | ||
| 4 | Remove brake hose (2) from brake caliper (1) and seal connections with suitable stop plugs. | Seal connections immediately. Otherwise damage can be caused by escaping brake fluid. |
|
| *BA42.10-P-1005-04R | |||
| Fig 2 | |||
| Fig 4 | |||
| 5 | Install in the reverse order. | ||
| 6 | Bleed brake system. | AR42.10-P-0010S |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 223 (except 223.182) except code Z07 | Model 223.182 | |
|---|---|---|---|---|
| BA42.10-P-1003-04R | Retaining screw, brake line to brake hose | Nm | 14 | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 223 (except 223.182) except code Z07 | Model 223.182 | ||
|---|---|---|---|---|---|
| BA42.10-P-1005-04R | Brake hose to fixed or floating caliper | Front | Nm | 24 | 16 |
| Rear | Nm | 50 | 50 | ||
