Remove/Install Brake Hose At Rear Axle - AR42.10-P-0023S
Model 223
MODIFICATION NOTES
| 13.03.2023 | Replace brake hose (2). Always replace brake hose (2) after removal. |
Operation step 4. | |
| 31.05.2023 | Brake hose to fixed or floating caliper | Model 223 with code ME10 model 223 with code Z07 | BA42.10-P-1005-04R |
| 12.10.2023 | Brake hose to fixed or floating caliper | BA42.10-P-1005-04R |

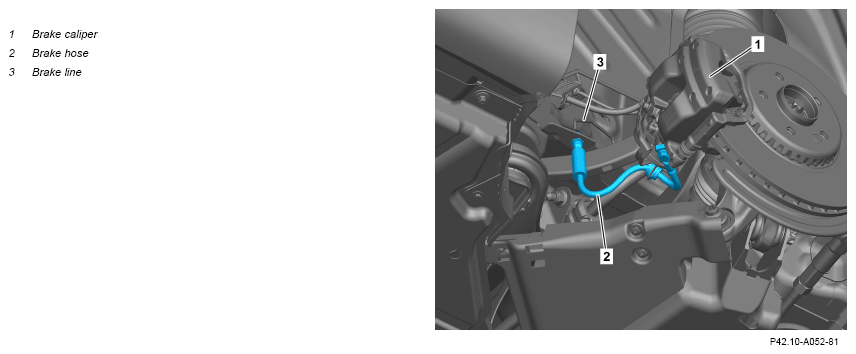

Shown on model 223.031 on right side of vehicle
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Notes on installing brake hoses | AH42.10-P-9406-01LWO | |
| Notice | Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear wheel. | AR40.10-P-1102A | |
| 2 | Detach brake line (3) from brake hose (2) and seal connections with suitable stop plugs. | Seal connections immediately. Otherwise damage can be caused by escaping brake fluid. |
|
| *BA42.10-P-1003-04R | |||
| Fig 1 | |||
| Fig 2 | |||
| 3 | Remove brake hose (2) from brake caliper (1) and seal connections with suitable stop plugs. | Seal connections immediately. Otherwise damage can be caused by escaping brake fluid. |
|
| *BA42.10-P-1005-04R | |||
| Fig 2 | |||
| 4 | Remove brake hose (2) from holder of brake caliper (1). | ||
| 5 | Install in the reverse order. | ||
| 6 | Bleed brake system. | AR42.10-P-0010S |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 223 (except 223.182) except code Z07 | Model 223 (except 223.182) with code Z07 | |
|---|---|---|---|---|
| BA42.10-P-1003-04R | Retaining screw, brake line to brake hose | Nm | 14 | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 223.182 | |
|---|---|---|---|
| BA42.10-P-1003-04R | Retaining screw, brake line to brake hose | Nm | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 223 (except 223.182) except code Z07 | Model 223 (except 223.182) with code Z07 | ||
|---|---|---|---|---|---|
| BA42.10-P-1005-04R | Brake hose to fixed or floating caliper | Front | Nm | 24 | 16 |
| Rear | Nm | 50 | 24 | ||
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 223.182 | ||
|---|---|---|---|---|
| BA42.10-P-1005-04R | Brake hose to fixed or floating caliper | Front | Nm | 16 |
| Rear | Nm | 50 | ||
