Remove/Install Sliding Roof Panel Of Panoramic Sliding Sunroof - AR77.21-P-0007S
Model 223
with code 413 (Panoramic sliding sunroof/glass roof)
Shown on the left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

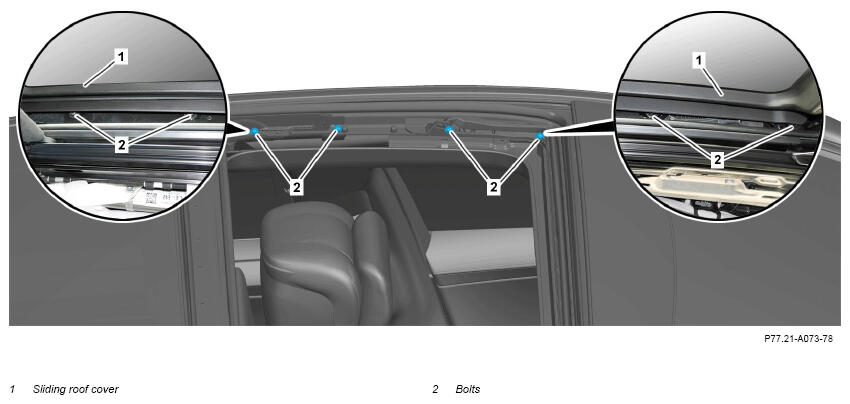

| 1 | Raise sliding roof panel (1) into tilt position and open until screws (2) on left and right can be accessed. | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Mark installation position of screws (2) on left and right at sliding roof panel (1). | ||
| 4 | Unscrew screws (2) on left and right. | ||
| *BA77.21-P-1001-01E | |||
| 5 | Remove sliding roof panel (1) upwards and set down on suitable base. | ||
| 6 | Install in the reverse order. | ||
| Adjust | |||
| 7 | Adjust sliding roof panel (1). | AR77.21-P-0008S |
PANORAMIC ROOF
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA77.21-P-1001-01E | Screw/bolt, front guide to panoramic sliding sunroof | Nm | 5 |
