Adjust Sliding Roof Panel Of Panoramic Sliding Sunroof - AR77.21-P-0008S

Model 223

with code 413 (Panoramic sliding sunroof/glass roof)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Check

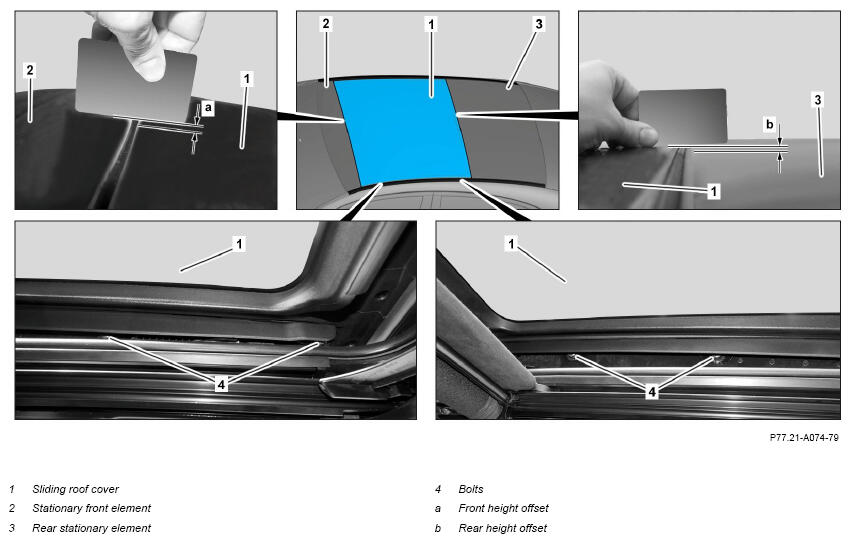

1	Close sliding roof panel (1) at panoramic sliding sunroof.
2	Check front height offset (a) on front stationary element (2) relative to the sliding roof panel (1).	The rear edge of the front stationary element (2) must be flush or not more than 2 mm higher than the sliding roof panel (1). The dimension of the front height offset (a) must be the same size over the entire width of sliding roof panel (1).
3	Check rear height offset (b) on the sliding roof panel (1) relative to the rear stationary element (3).	The rear edge of the sliding roof panel (1) must be flush or not more than 2 mm higher than the rear stationary element (3). The dimension of the rear height offset (b) must be the same over the entire width of sliding roof panel (1).
	Adjust
4	Raise sliding roof panel (1) into tilt position and open until screws (4) on left and right can be accessed
5	Release screws (4) on left and right in succession and slightly retighten by hand.	Ensure that sliding roof panel (1) is not misaligned during release of screws (4).
6	Close sliding roof panel (1) at panoramic sliding sunroof.
7	Adjust front height offset (a) on the sliding roof panel (1) so that the rear edge of the front stationary element (2) is flush or not more than 2 mm higher than the completely closed sliding roof panel (1).	The dimension of the front height offset (a) must be the same size over the entire width of sliding roof panel (1).
8	Adjust rear height offset (b) on the sliding roof panel (1) so that the rear edge of the sliding roof panel (1) is flush or not more than 2 mm higher than the rear stationary element (3).	The dimension of the rear height offset (b) must be the same over the entire width of sliding roof panel (1).
9	Raise sliding roof panel (1) into tilt position and open until screws (4) on left and right can be accessed.
10	Tighten screws (4) on left and right.	Screw/bolt, front guide to panoramic sliding sunroof	*BA77.21-P-1001-01E
11	Close sliding roof panel (1) at panoramic sliding sunroof.
12	Check setting of sliding roof panel (1) at panoramic sliding sunroof.	If there is a problem, Readjust sliding roof panel (1) at panoramic sliding sunroof.
	Normalizing
13	Normalize sliding roof panel (1) at panoramic sliding sunroof using vehicle diagnosis system and perform teach-in run for automatic reversing function.
			AD00.00-P-2000-06FR
