Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind - AR77.21-P-0230S
Model 223
with code 413 (Panoramic sliding sunroof/glass roof)
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front roller sunblind for panoramic sliding sunroof. | AR77.21-P-0207S | |

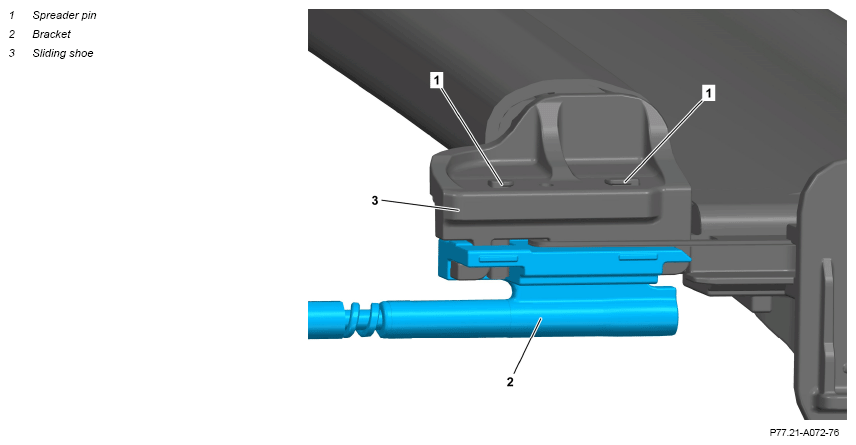

| 2 | Remove expanding pins (1). | Fig 1 | |
| 3 | Pull drive cable forward with bracket (2) to remove from sliding shoe (3). | ||
| 4 | Install in the reverse order. |
