TAILLAMP Reinforcement Separation - Ar63.20-P-2011-01S

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 03 39 00 Rivet die		WS60.00-P-0386K

Model 223.0/1/9

The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

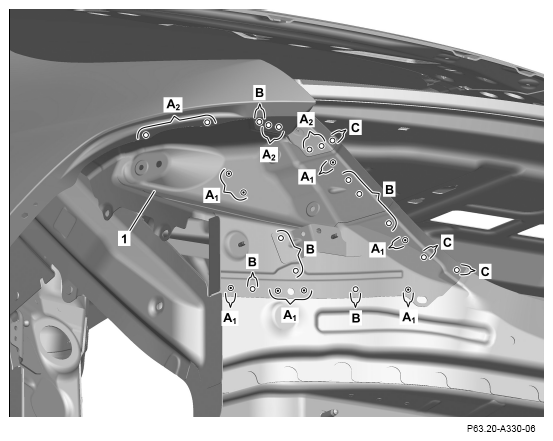

1. Expose and cut off spot welds on rear lamp reinforcement (1) (areas A₁ ).
2. Expose spot welds on rear lamp reinforcement (1) and drill through with Ø 6.5 mm bit (areas A₂ ).
3. Drill through clinch connections on rear lamp reinforcement (1) with Ø 6 mm bit (areas B).
4. Press out self-piercing rivets in rear lamp reinforcement (1) with rivet press tool (areas C).

   Courtesy of MERCEDES-BENZ USA

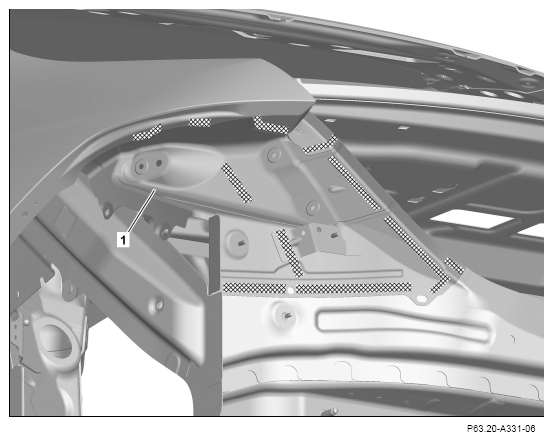

5. Heat rear lamp reinforcement (1) in the cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

6. Remove rear lamp reinforcement (1).

   Courtesy of MERCEDES-BENZ USA

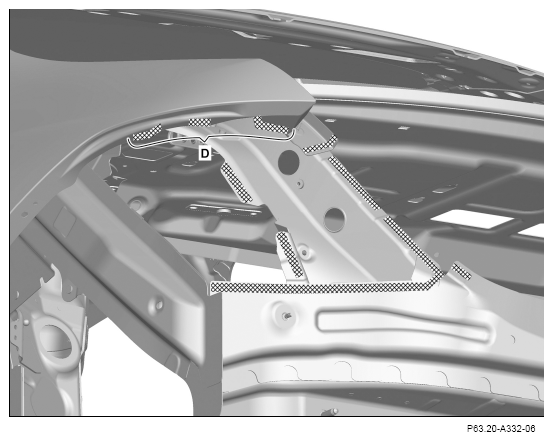

7. Grind mating surfaces down to bare metal in cross-hatched areas.

   Grind mating surfaces down to bare metal on inside (area D).

   Observe pretreatment of bonding surfaces.

8. Remove grinding dust and drill chips.
