Check Underfloor Protective Plate - AP61.40-P-6130S
Model 223
with code Z07 (B7 armoring on special protection version)

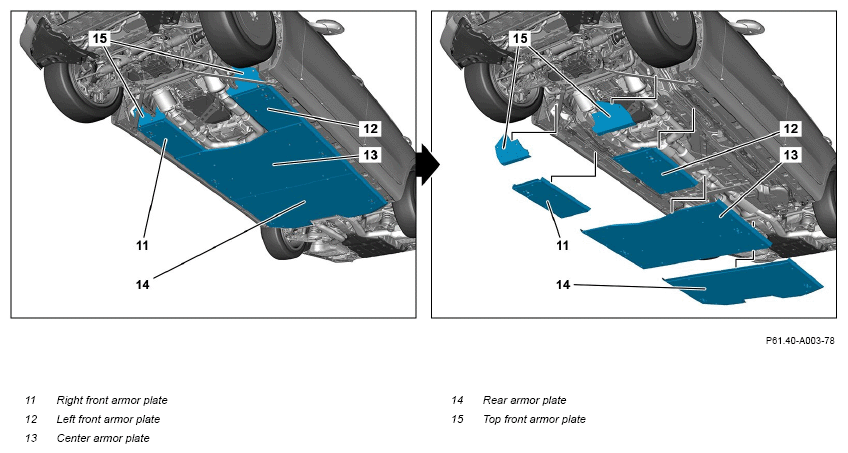

Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z21 (Fire-extinguishing system)

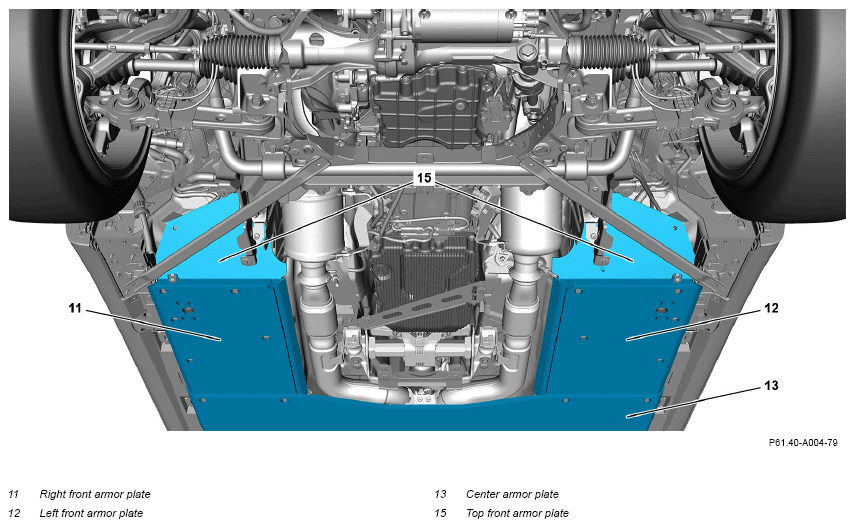

Shown on model 223.179 with code Z07 (B7 armoring for special protection version), with code Z21 (Fire-extinguishing system)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Preparatory tasks | |||
| 1 |
Lift vehicle with vehicle lift. | AR00.60-P-1006A | |
| Check | |||
| 2 | Check right front armor plate (11), left front armor plate (12), center armor plate (13), rear armor plate (14) and upper front armor plates (15) and layers applied on them for damage. | If problems are determined, ↓ Create a TIPS case and proceed according to the feedback. |
|
| Remove | |||
| 3 |
Remove right front armor plate (11), left front armor plate (12), center armor plate (13), rear armor plate (14) and upper front armor plate (15). | AR61.40-P-1001S | |
| Check | |||
| 4 | Check removed right front armor plate (11), left front armor plate (12), center armor plate (13), rear armor plate (14) and upper front armor plates (15) and layers applied on them for damage from all sides. | If problems are determined, ↓ Create a TIPS case and proceed according to the feedback. |
|
| Install | |||
| 5 |
Install right front armor plate (11), left front armor plate (12), center armor plate (13), rear armor plate (14) and upper front armor plate (15). | AR61.40-P-1001S |
