Remove/Install Wi-Fi Antenna In Center Of Instrument Panel - AR82.85-P-0013S
Model 223
with code 534 (Connect 20 Premium (NTG7))

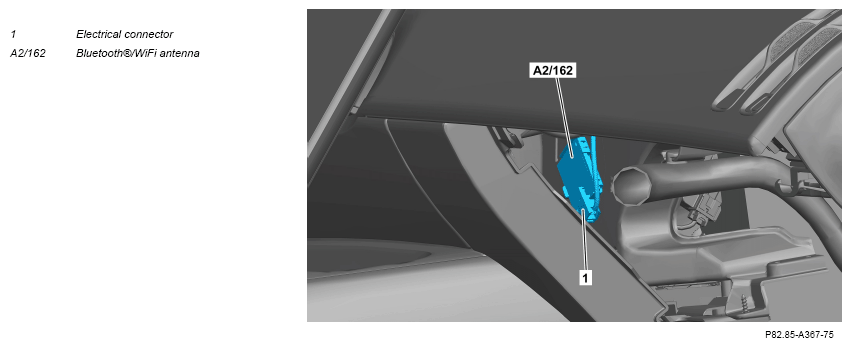

Shown on model 223.### 1#
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove glove box. | AR68.10-P-1400S | |
| 3 | Unclip Bluetooth®/Wi-Fi antenna (A2/162) with holder and remove until the electrical connector (1) is accessible. | ||
| 4 | Release electrical connector (1) and disconnect. | ||
| 5 | Remove Bluetooth®/Wi-Fi antenna (A2/162). | ||
| 6 | Install in the reverse order. |
