Remove/Install Speaker In Seat Backrest Of Front Seat - AR82.62-P-0025S
Model 223
with code 811 (High-End sound system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove seat backrest trim. | Model 223 with code 811 (High-End sound system) except code 735 (Additional scope of trim elements) |
AR91.10-P-1912SA |
| Model 223 with code 735 (Additional scope of trim elements) with code 811 (High-End sound system) |
AR91.10-P-1912S | ||

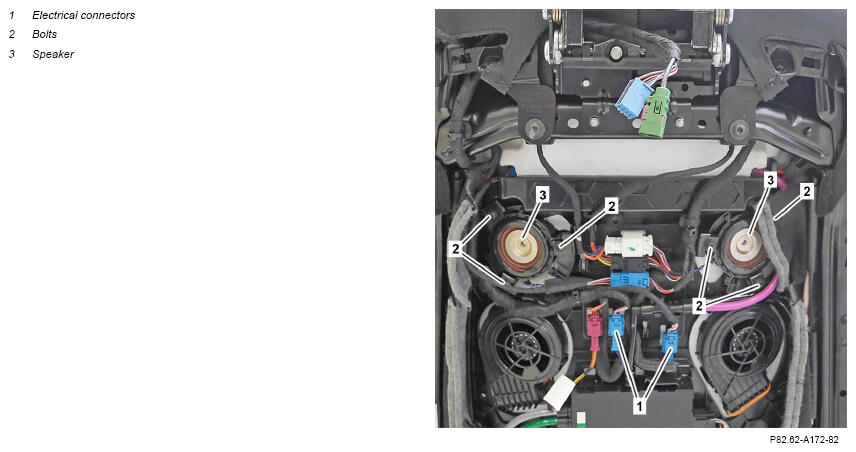

| 2 | Remove and disconnect respective electrical connector (1). | ||
| 3 | Remove respective screws (2). | ||
| 4 | Remove respective speaker (3). | ||
| 5 | Install in the reverse order. |
