Remove/Install Rear Seat Cushion Ventilation Motors - AR91.30-P-1955S
Model 223
with code 402 (Rear seat climate control)
| Remove/install | |||
| 1 | Remove cover from seat cushion padding. | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Rear individual seat design) with code 402 (Rear seat climate control) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 402 (Rear seat climate control) except code 224 (Rear individual seat design) |
AR91.18-P-1851SA |
| 2 | Release air cushion with massage function until rear seat cushion seat ventilation motors (M18/6, M18/8) are accessible. | Model 223 with code 402 (Rear seat climate control) with code 406 (Multicontour rear seat) |
AR91.25-P-1756S |

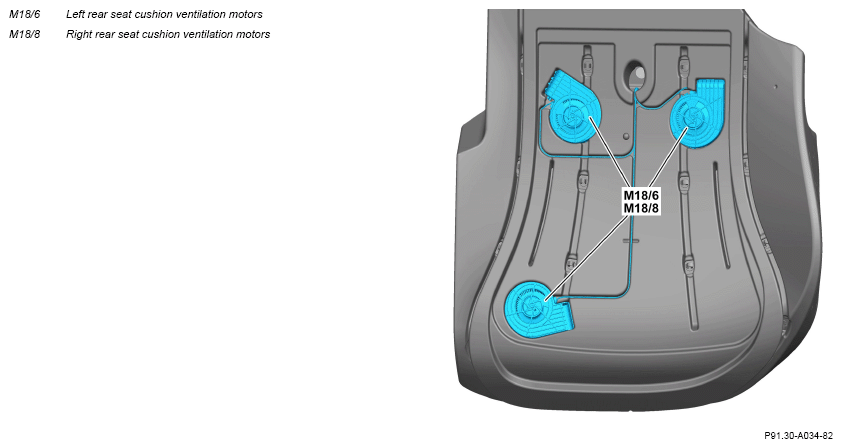

| 3 | Release rear seat cushion seat ventilation motors (M18/6, M18/8) in seat cushion padding and remove. | ||
| 4 | Install in the reverse order. |
