Remove/Install Rear Seat Cushion Cover - AR91.18-P-1851SA

Model 223

with code 223 (Electric backrest adjustment and head restraints)

except code 224 (Individual rear seats)

Model 223

with code 223 (Electric backrest adjustment and head restraints)

with code 224 (Individual rear seats)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove seat cushion padding (2).		AR91.12-P-1022SA
2	Unhook terminal strip of outer cover (1) all the way round the underside of the seat cushion padding (2).	Extraction hook	Fig 2
3	Pull cover (1) over seat cushion padding (2).

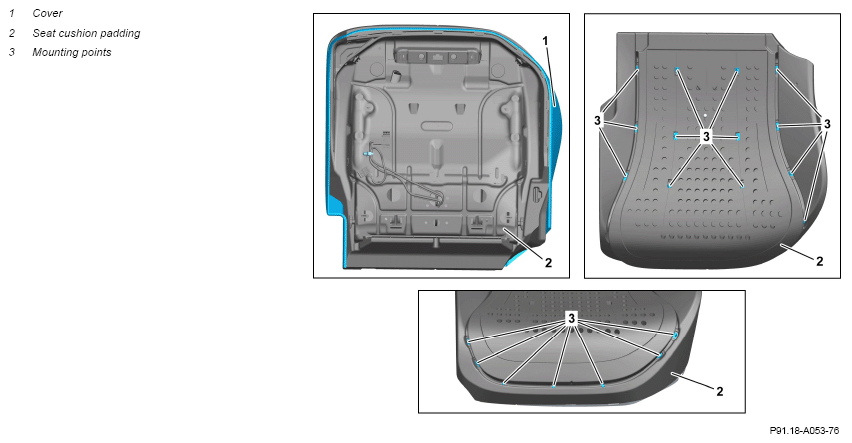

4	Unfasten staple wires of cover (1) at attachment points (3).		AR91.18-P-1851-01FRX
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 1
5	Remove cover (1) from seat cushion padding (2).
	Install
6	Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2).
7	Fasten staple wires of cover (1) at attachment points (3).		AR91.18-P-1851-01FRX
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 1
8	Pull cover (1) over seat cushion padding (2).
9	Hook terminal strips of cover (1) all-round into seat cushion padding (2).	Extraction hook	Fig 2
10	Install seat cushion padding (2).		AR91.12-P-1022SA

Fig 1: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Padding Clip Pliers (454 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
