Remove/Install Left Or Right Seat Belt In Rear Passenger Compartment - AR91.40-P-0682SG
Model 223
with code 223 (Electric backrest adjustment and head restraints)
with code 224 (Individual rear seats)
with code Z07 (B7 armoring on special protection version)
Model 223
with code 223 (Electric backrest adjustment and head restraints)
with code Z07 (B7 armoring on special protection version)
except code 224 (Individual rear seats)
Shown on left side of vehicle
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°c or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury . Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove corresponding side trim in rear. | AR68.30-P-4780SA | |
| 2 | Disconnect ground line of battery of 12 V onboard electrical system. | AR54.10-P-0051S | |
| 3 | Place damping over seat belt retractor (1) to one side. | ||
| 4 | Open seat belt guide (3) and guide out seat belt. | ||
| 5 | Release and disconnect the electrical connections (4). | ||

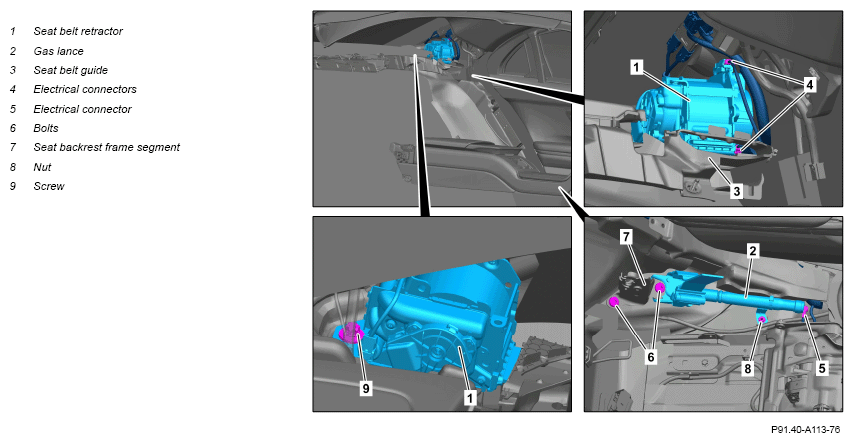

| 6 | Release and disconnect electrical connector (5). | Fig 1 | |
| 7 | Remove screws (6). j y | *BA91.12-P-1003-03L | |
| 8.1 | Remove seat backrest frame segment (7). | If a spacer plate is not installed under the seat backrest frame segment (7). |
|
| 8.2 | Remove seat backrest frame segment (7) and spacer plate below. | If a spacer plate is installed under the seat backrest frame segment (7). |
|
| 9 | Unscrew nut (8). | ||
| 10 | Remove screw (9). | *BA91.40-P-1009-01T | |
| 11 | Remove seat belt retractor (1) with seat belt and gas lance (2). | ||
| 12 | Install in the reverse order. | ||
| Check | |||
| 13 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR |
REAR SEATS
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|
| BA91.12-P-1003-03L | Bolt, backrest to body | Nm | 35 |
SEAT BELTS AND EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) |
|
|---|---|---|---|
| BA91.40-P-1009-01T | Screw, rear belt retractor | Nm | 35 |
