Remove/Install Left Or Right Seat Belt In Rear Passenger Compartment - AR91.40-P-0682S

Model 223

except code 223 (Electric backrest adjustment and head restraints)

except code 224 (Individual rear seats)

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°c or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury  . Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove seat backrest.	Model 223 except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) except code Z07 (B7 armoring on special protection version)	AR91.12-P-1713S
2	Disconnect ground line of battery of 12 V onboard electrical system.		AR54.10-P-0051S

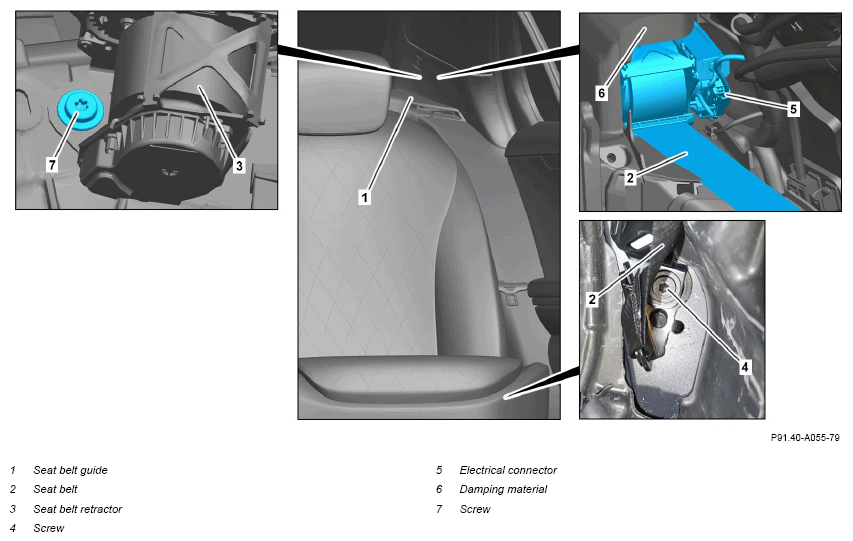

3	Unclip seat belt guide (1) and guide out seat belt (2).
4	Remove trim from C-pillar.		AR68.30-P-4490S
5	Place dampening (6) over seat belt retractor (3) to one side.
6	Disconnect electrical connector (5).
7	Unscrew bolt (4).	Bolt/nut for rear belt end fitting	*BA91.40-P-1011-01T
8	Remove screw (7).	Screw, rear belt retractor	*BA91.40-P-1009-01T
9	Remove seat belt retractor (3) with seat belt (2).
10	Install in the reverse order.
	Check
11	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.
			AD00.00-P-2000-06FR
