Remove/Install Heat Mat On Seat Cushion In Rear - AR91.30-P-0012S
Model 223
with code 872 (Left and right rear seat heating)
Model 223
with code 903 (Rear comfort seat heating)

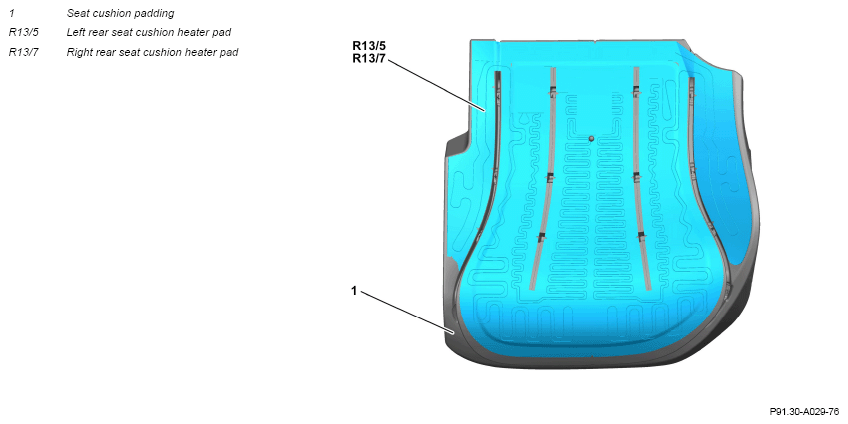

Shown with code 903 (Rear comfort seat heating)
| Remove | |||
| 1 | Remove outer cover from seat cushion padding (1). | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 872 (Left and right rear seat heating) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 903 (Rear comfort seat heating) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 872 (Left and right rear seat heating) except code 224 (Individual rear seats) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 903 (Rear comfort seat heating) except code 224 (Individual rear seats) |
AR91.18-P-1851SA |
| Model 223 with code 872 (Left and right rear seat heating) except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) Model 223 with code 903 (Rear comfort seat heating) except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) |
AR91.18-P-1851S | ||
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 2 | Heat rear seat surface heater pad (R13/5, R13/7) and detach carefully from seat cushion padding (1). | ||
| 000 588 15 84 00 Heat gun | Do not exceed temperatures of 60°C. Otherwise the structure of the seat cushion padding (1) changes. |
WS54.00-P-0125B | |
| 3 | Guide electrical wiring harness of rear seat surface heater pad (R13/5, R13/7) through seat cushion padding (1). | ||
| Install | |||
| 4 | Glue new rear seat surface heater pad (R13/5, R13/7) onto padding (1). | heater pad (R13/5, R13/7). |
|
| 5 | Guide electrical wiring harness of rear seat surface heater pad (R13/5, R13/7) through seat cushion padding (1). | ||
| 6 | Install cover on seat cushion padding (1). | Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 872 (Left and right rear seat heating) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 224 (Individual rear seats) with code 903 (Rear comfort seat heating) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 872 (Left and right rear seat heating) except code 224 (Individual rear seats) Model 223 with code 223 (Electric backrest adjustment and head restraints) with code 903 (Rear comfort seat heating) except code 224 (Individual rear seats) |
AR91.18-P-1851SA |
| Model 223 with code 872 (Left and right rear seat heating) except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) Model 223 with code 903 (Rear comfort seat heating) except code 223 (Electric backrest adjustment and head restraints) except code 224 (Individual rear seats) |
AR91.18-P-1851S |
