Remove/Install Heat Mat On Driver Seat Cushion - AR91.30-P-0015S

Model 223

with code 873 (Left and right driver's seat heating)

Model 223

with code 902 (Front comfort seat heating)

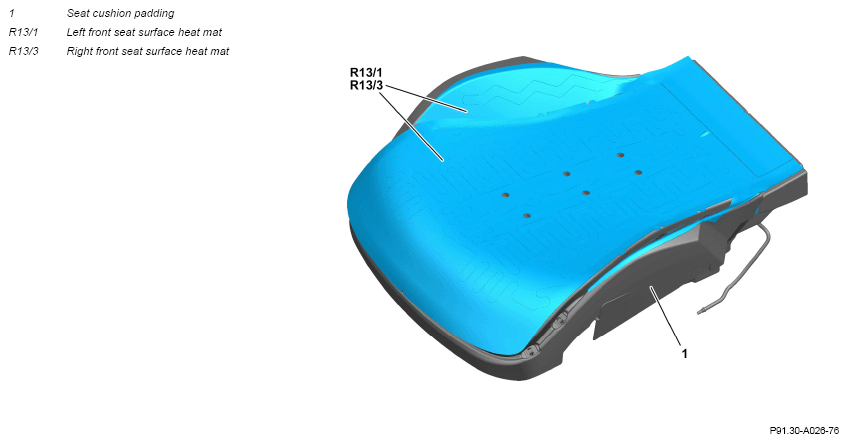

G16192788

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove outer cover from seat cushion padding (1).		AR91.18-P-1803S
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
2	Heat front seat surface heat mat (R13/1, R13/3) and carefully remove from seat cushion padding (1).
	000 588 15 84 00 Heat gun	Do not exceed temperatures of 60°C. Otherwise the structure of the seat cushion padding (1) changes. Replace front seat surface heat mat (R13/1, R13/3). Stick new front seat surface heat mat (R13/1, R13/3) onto seat cushion padding (1) according to template for old front seat surface heat mat (R13/1, R13/3).	WS54.00-P-0125B
3	Guide electrical wiring harness of front seat surface heat mat (R13/1, R13/3) through seat cushion padding (1).
4	Install in the reverse order.
