Remove/Install Cover On Driver Seat Cushion - AR91.18-P-1803S

Model 223

Courtesy of MERCEDES-BENZ USA

	Remove

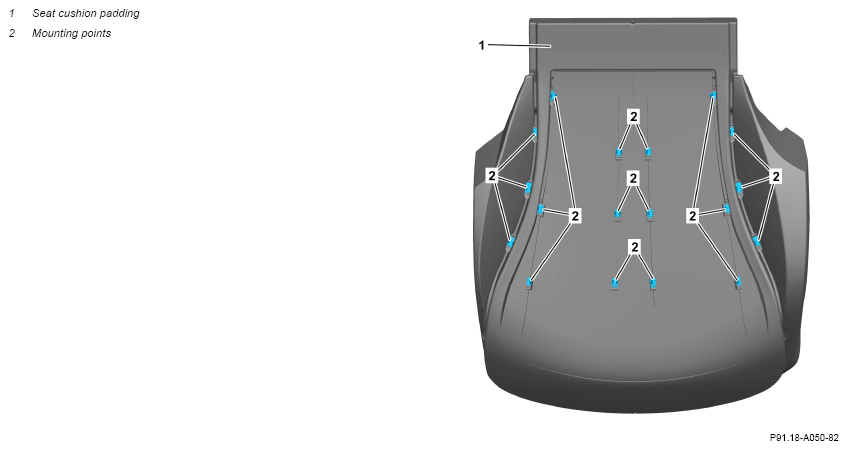

1	Remove seat cushion padding (1).		AR91.10-P-5040S
2	Slip outer cover over seat cushion padding (1).
3	Unfasten staple wires of outer cover at attachment points (2) of seat cushion padding (1).		AR91.18-P-1802-01LW
		Padding clip pliers	Fig 2
		Dismantling tool	Fig 1
4	Remove outer cover from seat cushion padding (1).
	Install
5	Align outer cover over seat cushion padding (1) such that the seams are seated in the cutouts of the seat cushion padding (1).
6	Fasten staple wires of outer cover at attachment points (2) of seat cushion padding (1).		AR91.18-P-1802-01LW
		Padding clip pliers	Fig 2
		Dismantling tool	Fig 1
7	Slip outer cover over seat cushion padding (1).
8	Install seat cushion padding (1).		AR91.10-P-5040S

Fig 1: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Padding Clip Pliers (454 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
