Remove/Install Front Side PRE-SAFE(R) Pulse Airbag In Backrest, Replace If Necessary - AR91.60-P-0703S
Model 223
with code 292 (PRE-SAFE® Impulse Side)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove front seat side airbag unit. | AR91.60-P-0695S | |

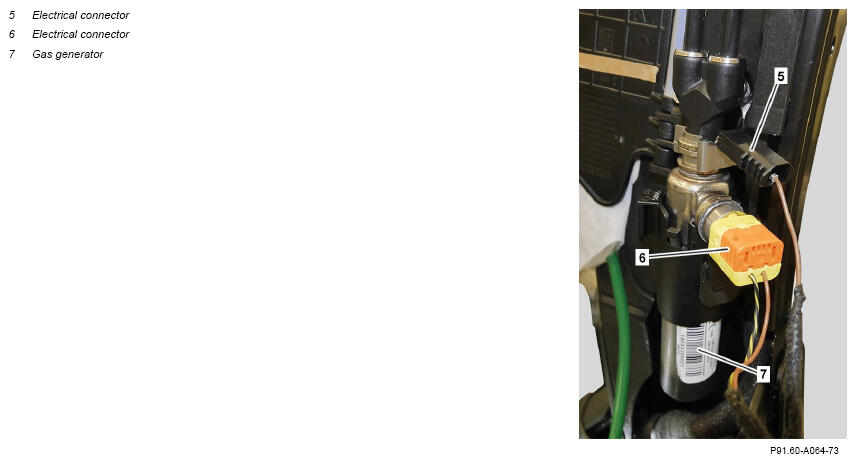

| 2 | Disconnect electrical connector (5). | ||
| 3 | Release and disconnect electrical connector (6). | Fig 2 | |

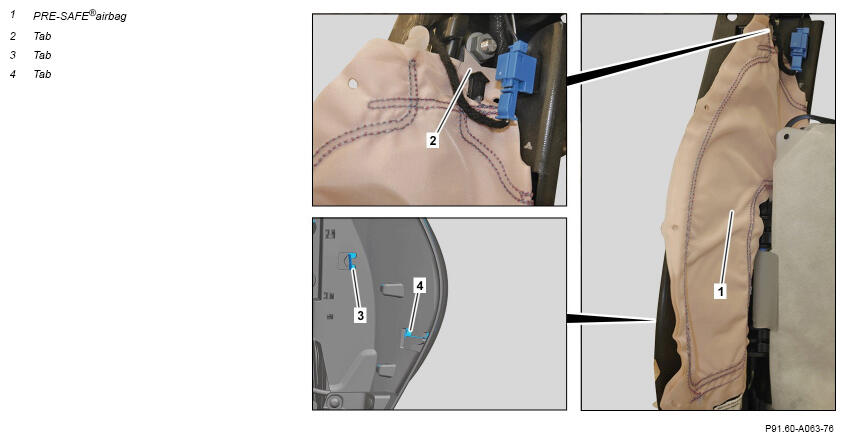

| 4 | Unhook shackles (2, 3, 4) of PRE-SAFE® airbag (1) from backrest shell. | ||
| 5 | Remove PRE-SAFE® airbag (1) together with gas generator (7). | ||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR |
