Remove/Install Engine Hood Lifter - AR91.60-P-0900S

Model 223

with code U60 (Pedestrian protection - Active hood)

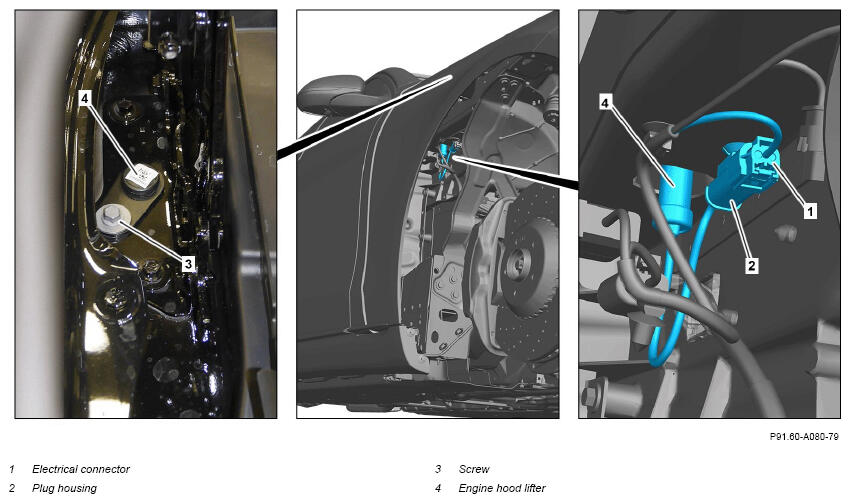

Fig 1: Engine Hood Lifter Components Location - Model 223 With Code U60

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Disconnect ground line of battery of 12 V on-board electrical system.		AR54.10-P-0051S
2	Remove rear section of front fender liner.	Model 223 with code U60 (Pedestrian protection - Active hood) except code 228 (Additional warm water heating) Model 223.0/1 with code U60 (Pedestrian protection - Active hood) except code 228 (Additional warm water heating)	AR88.10-P-1301S
3	Remove heater.	Model 223 with code 228 (Additional warm water heating) with code U60 (Pedestrian protection - Active hood) When removing right hood lifter.	AR83.70-P-5302S
4	Release electrical connector (1) and disconnect.
5	Unclip plug housing (2).
6	Remove bolt (3).	Screw/nut, hood lifter to body	*BA91.60-P-1002-02A
7	Extend hood lifter (4) upward out of hinge.
	Check
8	Check hood lifter (4) for damage.	If there is a problem, ↓ Replace hood lifter (4) and dispose of defective hood lifter (4) properly.
9	Install in the reverse order.
10	Connect diagnostic device and check Supplemental Restraint System (SRS).
			AD00.00-P-2000-06FR
