Retrofit Front Mercedes-Benz Dashcam - AZ54.71-P-0002SV

Model 223.0/1/9

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Remove both A-pillar trims.
			AR68.30-P-4050S
2	Remove trim under driver's side instrument panel.
			AR68.10-P-1501S
3	Remove bottom trim for instrument panel on front passenger side.
			AR68.10-P-1502S
4	Remove front passenger side fuse and relay module.
		Do not disconnect electrical connectors on front and rear side.	AR54.15-P-0004S
5.1	Remove B-pillar trim at top on driver's side and place to one side with seat belt attached.	Model 223.0##/1##/9## 1#
			AR68.30-P-4700S
5.2	Remove B-pillar trim at top and bottom on driver's side and place to one side with seat belt attached.	Model 223.0##/1##/9## 2#
			AR68.30-P-4700S
6.1	Remove B-pillar trim at top and bottom on front passenger side and place to one side with seat belt attached.	Model 223.0##/1##/9## 1#
			AR68.30-P-4700S
6.2	Remove B-pillar trim at top on front passenger side and place to one side with seat belt attached.	Model 223.0##/1##/9## 2#
			AR68.30-P-4700S
7	Remove front grab handles from roof on driver and front passenger side.
			AR68.30-P-4330S
8	Remove overhead control panel control unit.
			AR82.20-P-1000S
	Install
9	Retrofit mount for front dashcam (1).	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20°C. During the first hour avoid the application of any mechanical load. Otherwise adhesion problems may occur.	AZ54.71-P-0001-00LWE
		Cleaner	*BR00.45-Z-1025-04A
	Remove
10	Remove inner and outer cover of rain and light sensor with additional functions.
			AR82.30-P-7801S
11	Remove both sun visors.
			AR68.60-P-5480S
12	Remove front edge guard on both sides in area of roof lining.
13	Release front roof lining on driver and front passenger side.
	Install
14	Retrofit wiring harness for dashcam.		AZ54.71-P-0002-01SV
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A
		Front passenger footwell frame floor assembly ground point	*BA00.19-P-1039-01N
		Wiring harness repair kit, basic	Fig 2
		New passenger car wiring harness repair kit	Fig 1

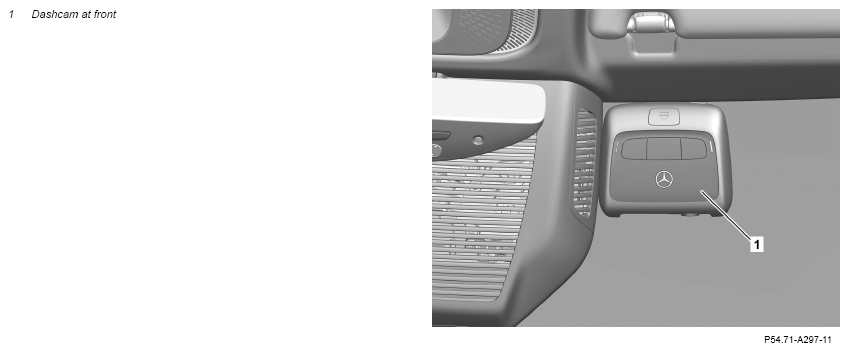

15	Latch dashcam at front (1) into dashcam mount opposite direction of arrow on eject button.	Mount dashcam at front (1) at the earliest one hour after gluing on the dashcam mount. Otherwise, the dashcam mount may work its way loose.
16	Install remaining parts.
17	Perform initial startup.		AZ54.71-P-0001-02LWE
	National settings for Mercedes-Benz dashcam		GF54.71-P-0010-02LWE
	Update Vehicle Documentation (VeDoc)
18	Attach "Mercedes-Benz dashcam retrofitted at front and rear as per AZ54.71-P-0002SV note" under field organization texts to DG 54, DG 67 and DG 68.
	Check
19	Perform function test.	See Owner's Manual.

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
