Remove/Install LiDAR Telescopic Nozzle - AR54.71-P-0005S
Model 223
with code 200 (Conditionally automated driving)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove radiator grille. | AR88.40-P-4001S | |
| Model 223.0/1 with code 200 (Conditionally automated driving) |
|||

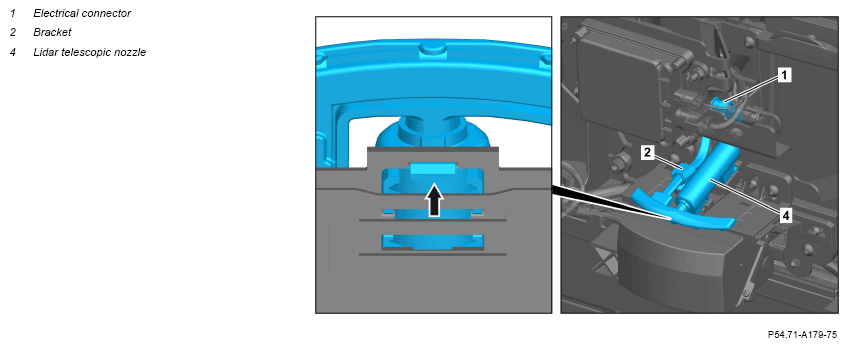

| 2 | Open holder (2). | ||
| 3 | Disconnect electrical connector (1). | ||

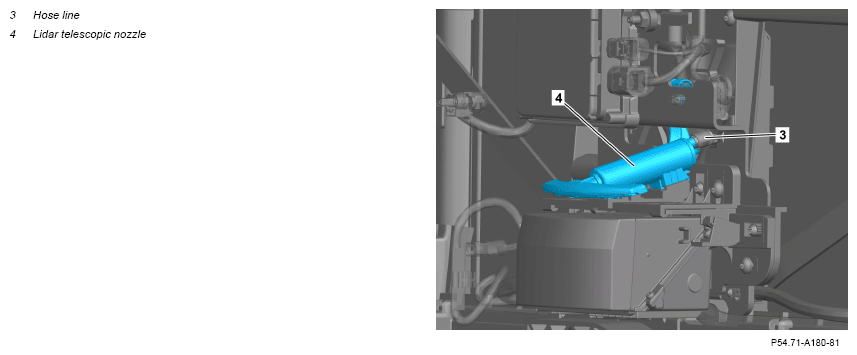

| 4 | Remove hose line (3) from LiDAR telescopic nozzle (4). | ||
| 5 | Release catch hook (arrow) and remove LiDAR telescopic nozzle (4) from holder. | ||
| 6 | Install in the reverse order. |
