Check Radar Beam Damping At Rear Bumper - AR54.70-P-0004S

Model 192, 206, 214, 223, 232, 236, 254.1/6, 294, 295, 296, 297

with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))

Model 192, 232

with code 507 (Premium remote-controlled parking)

Model 206, 214, 236, 254.1/6, 294, 295, 296, 297

with code 507 (Premium remote-controlled parking)

Shown on model 223

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Check
1	Connect diagnostic system.
			AD00.00-P-2000-06FR
2	Check attenuation of radar beam of left rear short range radar sensor (B29/13) and right rear short range radar sensor (B29/14) on rear bumper using vehicle diagnosis system and adjusting device (1).
	000 588 22 21 00 Adjusting device	Model 192, 232 with code 507 (Premium remote-controlled parking)	WS30.00-P-0011K
		Perform test on left rear short range radar sensor (B29/13) and right rear short range radar sensor (B29/14).
		To do this, select the following menu item: Left rear short range radar sensor (B29/13) or right rear short range radar sensor (B29/14) → Adaptation → Teach-in processes → Perform damping test of bumper.

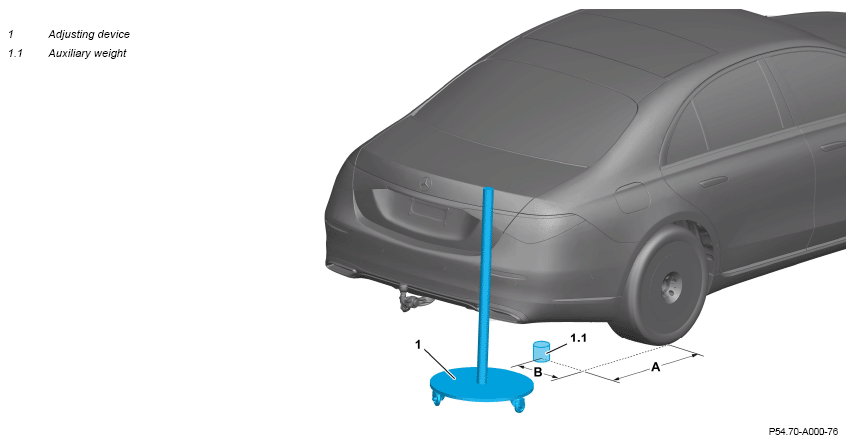

		The auxiliary weight (1.1) of the adjusting device (1) is positioned to the rear (dimension A) and to the vehicle center (dimension B) based on the dimensions specified in the diagnostic system.
3	Disconnect diagnostic system.
			AD00.00-P-2000-06FR
