Balancing Wheels - AR40.10-S-1040E
Model 447, 448, 906
| Remove | |||
| 1 | Detach complete wheels | Model 906 | AR40.10-D-1100H |
| Model 447, 448 | AR40.10-S-1100E | ||

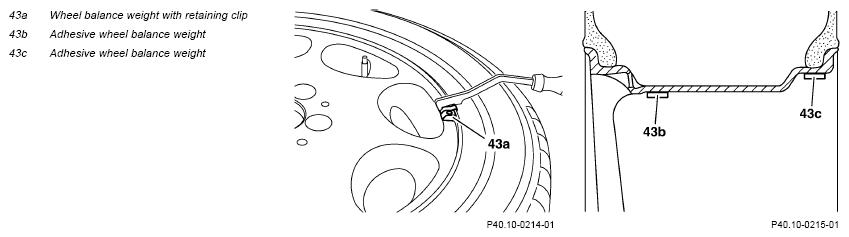

| 2.1 | Remove wheel balance weights with retaining clamp (43a) | For wheel balance weights with retaining clamp (43a). |
Fig 2 |
| 2.2 | Remove bonded wheel balance weights (43b, 43c) | With bonded wheel balance weights (43b, 43c). |
Fig 1 |
| Clean | |||
| 3 | Clean complete wheels | Always remove any soiling on the tires and disk wheels. Otherwise, the soiling will cause faulty measurement results. |
|
| Balancing | |||
| 4 | Balance complete wheels on stationary balancing machine | ||
| 000 588 29 21 00 Balancing machine | WS40.00-P-0076B | ||
| Install | |||
| 5 | Attach complete wheels | Model 906 | AR40.10-D-1100H |
| Model 447, 448 | AR40.10-S-1100E | ||
| Check | |||
| 6 | Perform a test drive and check complete wheels for any imbalance | If an imbalance is detected. ↓ Balance complete wheels again. |
