Tire Pressure Monitor (TPM) Control Unit, Component Description - GF40.15-S-5122TRA

Model 447

with code RY2 (Tire pressure monitoring at FA and RA, wireless)

Model 448.8

with code RY2 (Tire pressure monitoring at FA and RA, wireless)

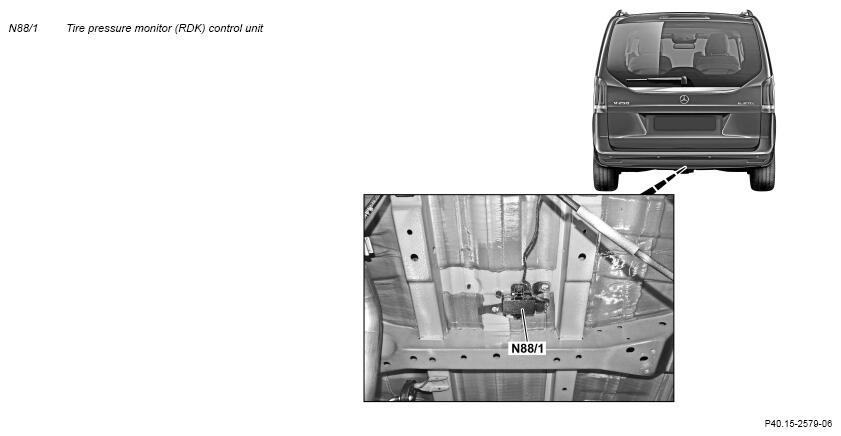

Illustration shows MODEL 447.8

Location

The tire pressure monitor (TPM) control unit (N88/1) is on the underfloor above the rear axle.

Tasks

The tire pressure monitor (TPM) control unit (N88/1) has the following tasks:

• Reading in of signals
• Evaluation of input factors
• Sending of information

Reading in of signals

The input factors are read in over the following connections:

• Two-way radio
• Chassis CAN (CAN E)

Two-way radio

The signals from the following sensors are read in via radio:

• Left front tire pressure sensor (A69/1)
• Right front tire pressure sensor (A69/2)
• Right rear tire pressure sensor (A69/3)
• Left rear tire pressure sensor (A69/4)

Chassis CAN (CAN E)

The following signals are received via the chassis CAN:

• Vehicle speed signal
• Outside temperature
• Kilometer reading

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor whereupon the information is then sent.

Sending of information

• MODEL 447.6/7

The tire pressure monitor (TPM) control unit (N88/1) sends information via the chassis CAN to the instrument cluster (IC) control unit; this information is displayed as messages or warning messages.

• Model 447.8 or model 448.8

The tire pressure monitor (TPM) control unit (N88/1) transmits information to the instrument cluster (IC) control unit via the chassis CAN, gateway for user interface CAN (N93/4) and user interface CAN (CAN HMI); this information is displayed as messages or warning messages.

Body

The central antenna is integrated in the tire pressure monitor (TPM) control unit (N88/1).

	Wiring diagram for tire pressure monitor control unit	Model 448.8 with code RY2 (Tire pressure monitoring at FA and RA, wireless)	PE40.15-S-2101-97VDA
		Model 447.8 with code RY2 (Tire pressure monitoring at FA and RA, wireless)	PE40.15-S-2101-97VVA
		Model 447.6/7 with code RY2 (Tire pressure monitoring at FA and RA, wireless)	PE40.15-S-2101-97VVB
