Extend Subharness For Squib Of Active Vent Valve On Front Passenger Airbag - AR91.60-S-0686EG
Model 447.6##/7## 13 up to 443368
with code ZU7 (National version for Canada)
Model 447.6##/7## 13 up to 443368
with code ZU8 (National version for USA)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering. | Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area. | AS00.19-Z-0002-01A | |
| Risk of injury caused by burns to skin and eyes. Risk of poisoning caused by inhaling fumes when working with heat-shrinkable tubing. | Work in well ventilated rooms only. Wear safety glasses with side protection and protective gloves. | AS00.19-Z-0001-01A | |
| Notice | Notes on soldering | AH00.19-P-1000-10A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on replacement of safety-relevant and special components | AH00.19-P-1000-08A | |
| Notes on soft soldering | AH00.19-P-1000-07A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on cable protection | AH00.19-P-1000-11A | ||
| Extend bleed valve squib subharness (1) | |||
| 1 | Determine and mark positive line on plug (2) of the bleed valve squib subharness (1). | ||
| Wiring diagram for supplemental restraint system control unit | Model 447.6##/7## 13 to 443368 with code ZU7 (National version for Canada), model 447.6##/7## 13 to 443368 with code ZU8 (National version for USA) | PE91.60-S-2106VVE | |

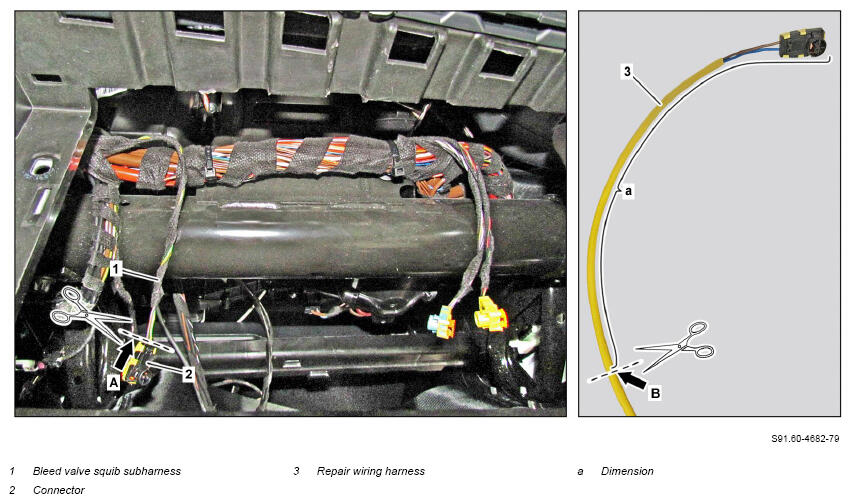

| 2 | Cut off plug (2) from bleed valve squib subharness (1) (arrow A). | ||
| 3 | Cut repair wiring harness (3) as per dimension (a) (arrow B). | ||
| 4 | Extend bleed valve squib subharness (1) using axial solder connector and the repair wiring harness (3). | AR54.18-P-0100-06A | |
| 000 588 15 84 00 Heat gun | WS54.00-P-0125B | ||
| Fig 4 | |||
| Fig 5 | |||
| Fig 1 | |||
| 5 | Protect repair point after the line repair with fabric tape. | AR00.19-P-0100-08A | |
| Remove | |||
| 6 | Expose SRS control unit (N2/18) until the electrical connector on the SRS control unit (N2/18) is accessible. | AR91.60-S-0622E | |
| Check | |||
| 7 | Disconnect electrical connector on SRS control unit (N2/18). | ||
| 8 | Check resistance of the extended bleed valve squib subharness (1). | AR54.18-P-0600-01A | |
| Wiring diagram for supplemental restraint system control unit | Model 447.6##/7## 13 to 443368 with code ZU7 (National version for Canada), model 447.6##/7## 13 to 443368 with code ZU8 (National version for USA) | PE91.60-S-2106VVE | |
| Fig 2 | |||
| Fig 3 | |||
| 9 | Connect electrical connector on SRS control unit (N2/18). | ||
| Install | |||
| 10 | Reinstall detachable parts in the area of the SRS control unit (N2/18). | AR91.60-S-0622E |
