Remove/Install Side Upper Front Air Duct - AR83.10-S-0200EH
Model 447, 448 With Code XM7 (MOPF II)

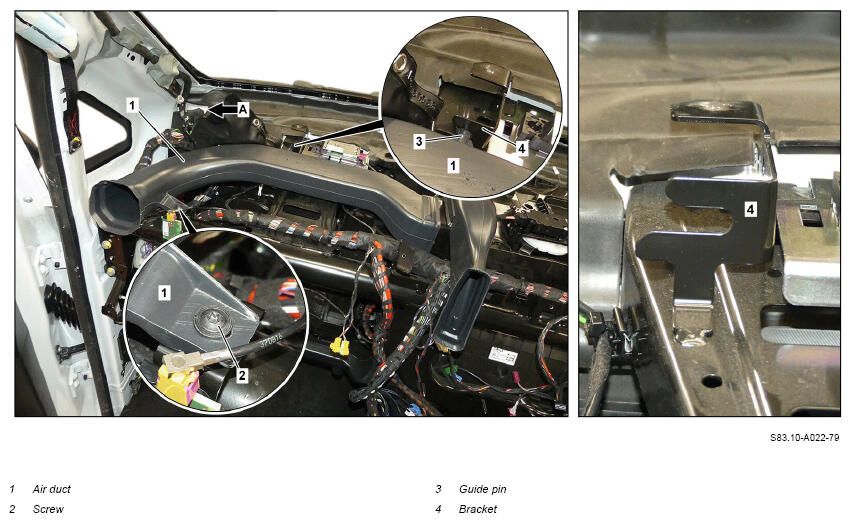

Shown On Model 447.7## 2# on left side of vehicle

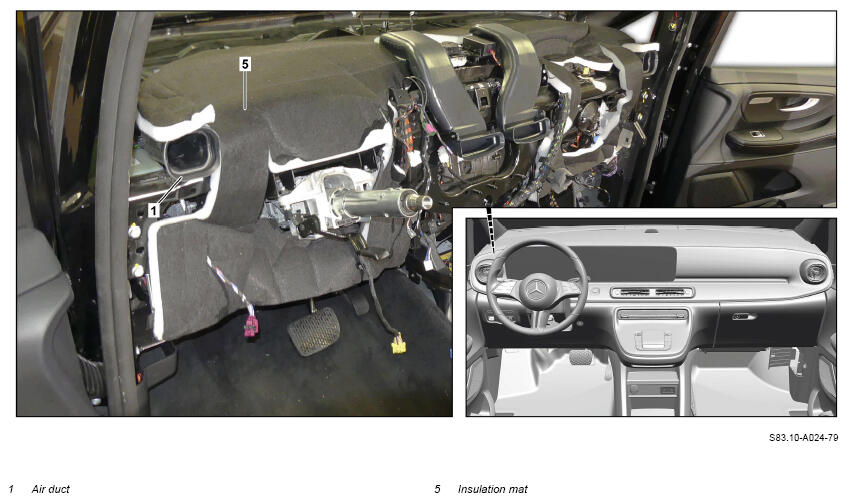

Shown On Model 447.8## 1# on left side of vehicle
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove instrument panel. | Model 447.8, 448.8 | AR68.10-S-1000EH |
| Model 447.6/7, 448.7 | AR68.10-S-1000EI | ||
| 2 | Remove insulation mat (5) until respective air duct (1) is accessible. | Model 447.8, 448.8 | |
| 3 | Remove respective bolt (2). | ||
| 4 | Slide respective air duct (1) in direction of arrow (arrow A) and remove air duct (1). | ||
| 5 | Install in the reverse order. |
