Remove/Install Side Air Vent Trim - AR68.10-S-1596EH

Model 447, 448

With Code XM7 (MOPF II)

Courtesy of MERCEDES-BENZ USA

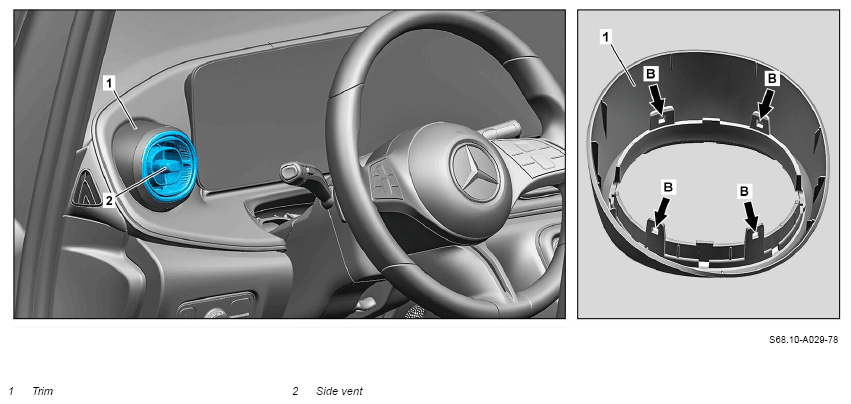

Shown On model 447.8 on left side of vehicle

Courtesy of MERCEDES-BENZ USA

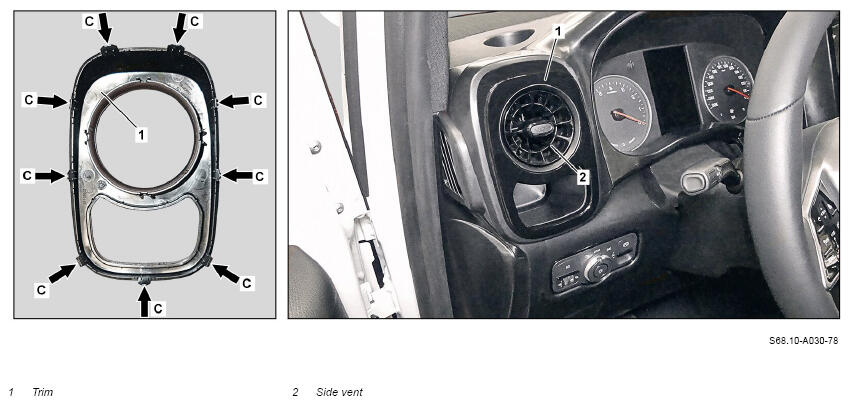

Shown On model 447.7 on left side of vehicle

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove the trim (1) for the side air vent (2).	Model 447.8, 448.8 To do so, release the catch tabs (arrows B). Model 447.6/7, 448.7 To do so, release the catch tabs (arrow C). Make sure that the trim (1) is seated correctly. Check the catch tabs (arrows B, C) for damage.
		Long wedge If damage is present: ↓ Replace the damaged trim (1).	Fig 1
2	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
