Remove/Install Turbocharger Oil Feed Line - AR09.40-S-6035EG
Model 447, 448 with engine 274
MODIFICATION NOTES
| 01.12.2023 | Bolt, oil feed line to crankcase | BA09.40-Z-1005-02KOF | |
| 01.12.2023 | Bolt, oil feed line to exhaust gas turbocharger | BA09.40-Z-1004-02KOF | |
| 29.04.2024 | Change notice (AH) document reference, added | Information block |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Remove/install | |||
| 1 | Remove air intake pipe from ATL and place to one side. | AR09.10-S-8131EG | |
| 2 | Remove engine charge air duct from exhaust gas turbocharger. | AR09.41-S-8622EG | |

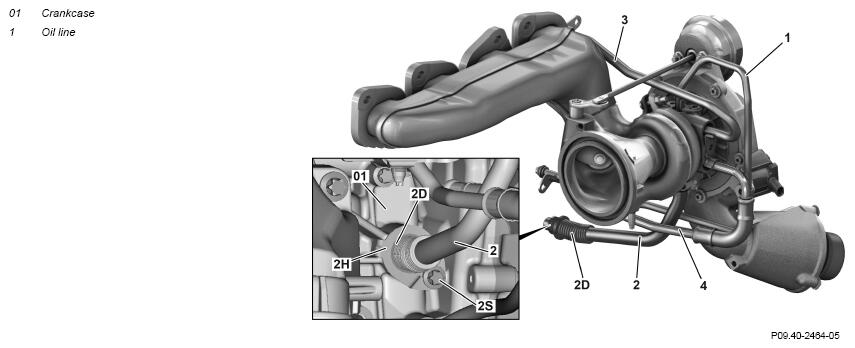

| 3 | Unscrew screw and remove oil line (1) on exhaust gas turbocharger. | *BA09.40-Z-1004-02KOF | |
| 4 | Remove lower engine compartment lining. | AR61.20-S-1105E | |
| 5 | Unscrew screw disassemble oil line (1) on crankcase (01) and remove. | *BA09.40-Z-1005-02KOF | |
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Check engine oil level. | ||
| Multigrade engine oils (specification 229.5) | If oil level is incorrect, ↓ Correct engine oil level. |
BB00.40-P-0229-05A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Check for leak tightness when engine is running. |
TURBOCHARGER
| Number | Designation | Engine 274 in model 447, 448 | ||
|---|---|---|---|---|
| BA09.40-Z-1004-02KOF | Bolt, oil feed line to exhaust gas turbocharger | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||
TURBOCHARGER
| Number | Designation | Engine 274 in model 447, 448 | ||
|---|---|---|---|---|
| BA09.40-Z-1005-02KOF | Bolt, oil feed line to crankcase | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||
