Remove, Install Engine Charge Air Duct At Turbocharger - AR09.41-S-8622EG
Model 447, 448 with engine 274
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Remove air filter housing | AR09.10-S-1150EG | |
| 2 | Remove engine air intake duct downstream of air filter | AR09.10-S-8130E | |

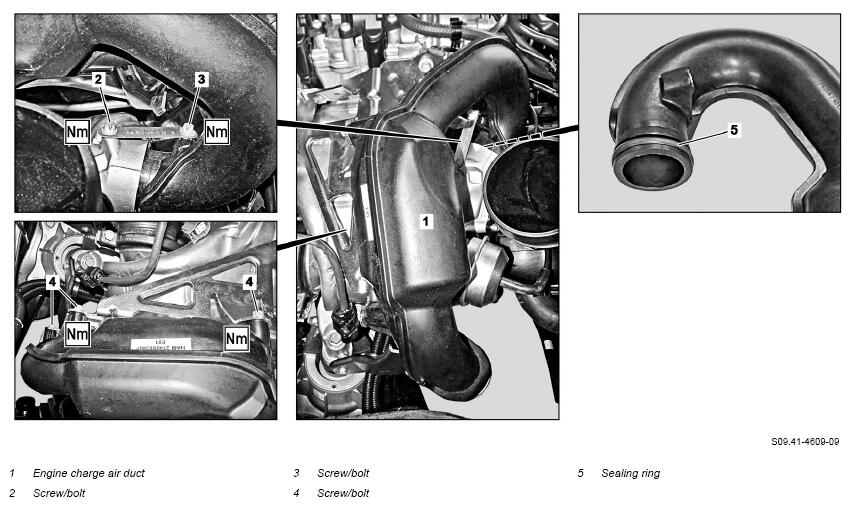

| 3 | Remove charge air hose upstream of charge air cooler on engine charge air duct (1) | AR09.41-S-8621EG | |
| 4 | Loosen screw/bolt (2) | *BA00.10-Z-1002-01KOA | |
| 5 | Remove screw/bolt (3) | *BA00.10-Z-1002-01KOA | |
| 6 | Remove screw/bolts (4) | *BA00.10-Z-1002-01KOA | |
| 7 | Remove engine charge air duct (1) | ||
| 8 | Check sealing ring (5) for damage and inspect and, if necessary, replace | Lubricant |
*BR00.45-Z-1032-06A |
| 9 | Install in the reverse order |
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 8.8 | 10.9 | ||
|---|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 9 | 13 |
| Phosphated | Nm | 9 | 12 | ||
HEADLESS SCREWS/BOLTS: SCREWS/BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | 12.9 | ||
|---|---|---|---|---|
| BA00.10-Z-1002-01KOA | M6 | Galvanized | Nm | 16 |
| Phosphated | Nm | 14 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1032-06A | Lubricant | A 000 989 08 60 |
