Remove/Install Boost Pressure Sensor Downstream Of Throttle Valve - AR09.41-S-0004EG
Model 447, 448 with engine 274

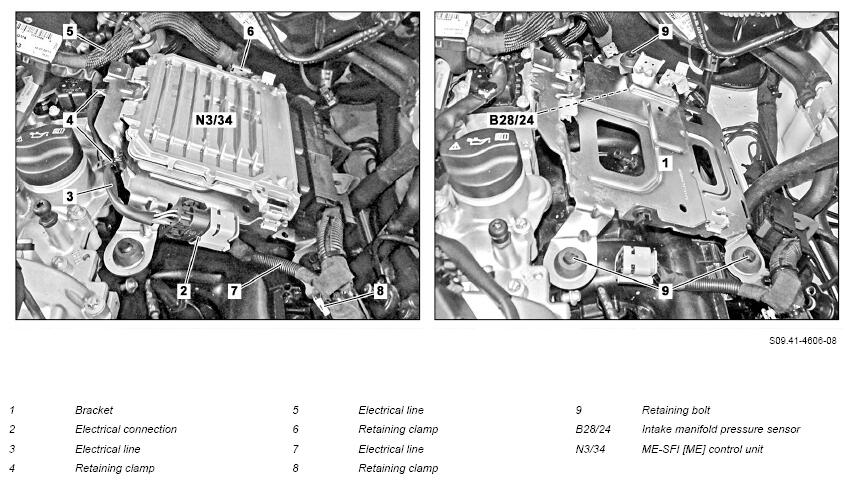

Fig 1: Boost Pressure Sensor Downstream Of Throttle Valve Components Location - Model 447 With Engine 274
| Remove/install | |||
| 1 | Remove air filter housing | AR09.10-S-1150EG | |
| 2 | Remove electrical connection (2) from bracket (1) | ||
| 3 | Disconnect electrical connection (2) | ||
| 4 | Remove electrical line circuit (3) together with retaining clamps (4) from bracket (1) | ||
| 5 | Remove electrical line circuit (5) together with retaining clamps (6) from bracket (1) | ||
| 6 | Remove electrical line circuit (7) together with retaining clamps (8) from bracket (1) | ||
| 7 | Remove ME-SFI [ME] control unit (N3/34) | AR07.08-S-7008EG | |
| 8 | Remove bracket (1) | ||

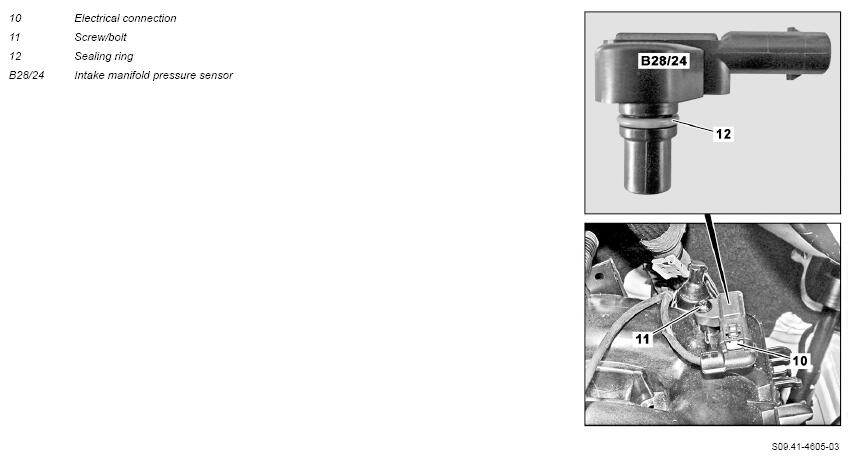

| 9 | Disconnect electrical connection (10) | ||
| 10 | Remove intake manifold pressure sensor (B28/24) | ||
| 11 | Install in the reverse order | ||
| 12 | Read out fault memory with diagnostic system | ||
| AD00.00-S-2000-04E | |||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Check for leaktightness with engine running |
